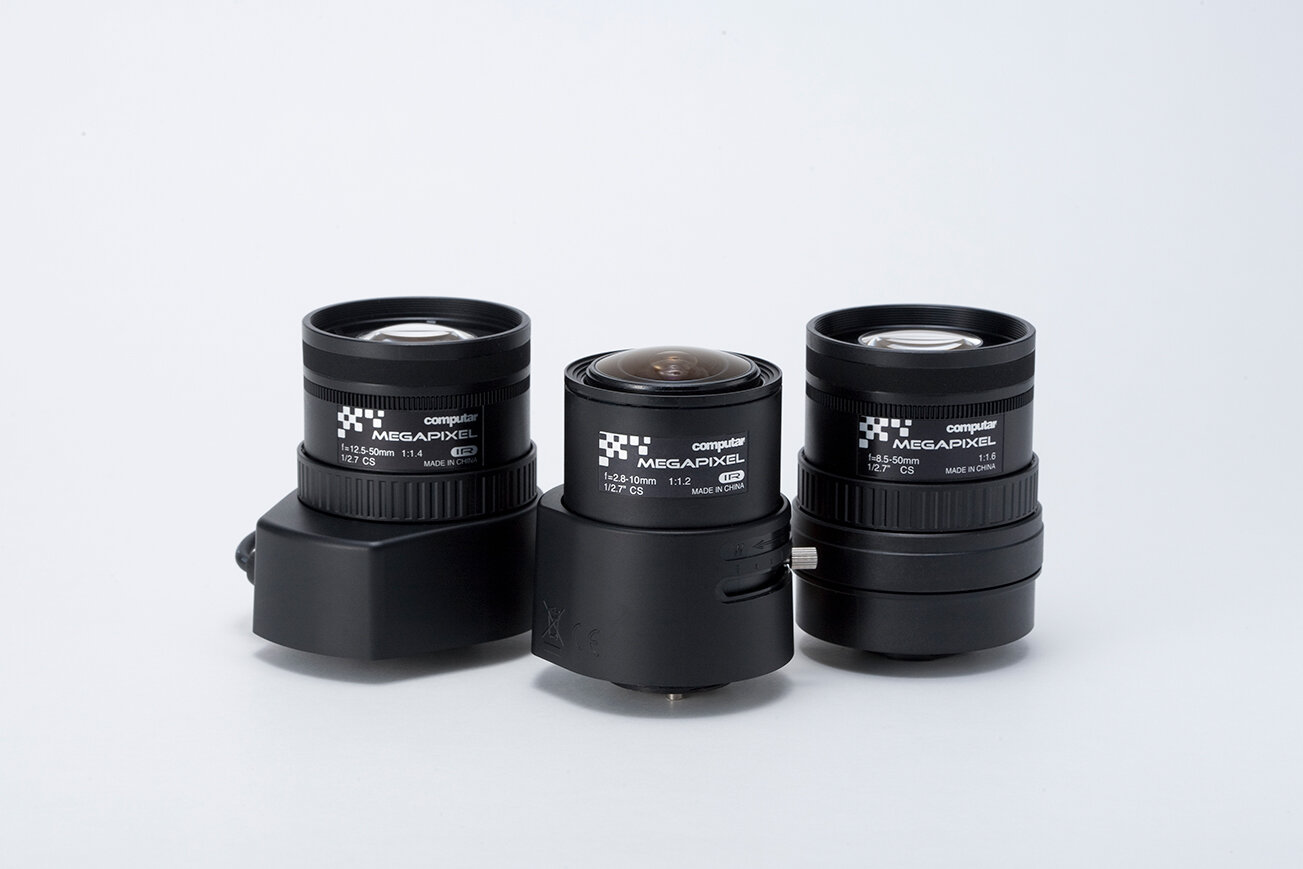

- 支持1/2.7英寸3百万像素，紧凑型设计
- 从广角到长焦，用途丰富多样
- 各机型均提供手动光圈、DC光圈、P-iris
向右滚动表格即可下载外观图纸和技术信息。
向右滚动表格即可下载外观图和技术信息。
|
机型名称
|
传感器尺寸
|
焦距
|
F値
|
拍摄距离
|
失真
|
重量
|
相关图像
|
参数表
|
CAD图纸
|
技术资料
|
date | resolution | image circle |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

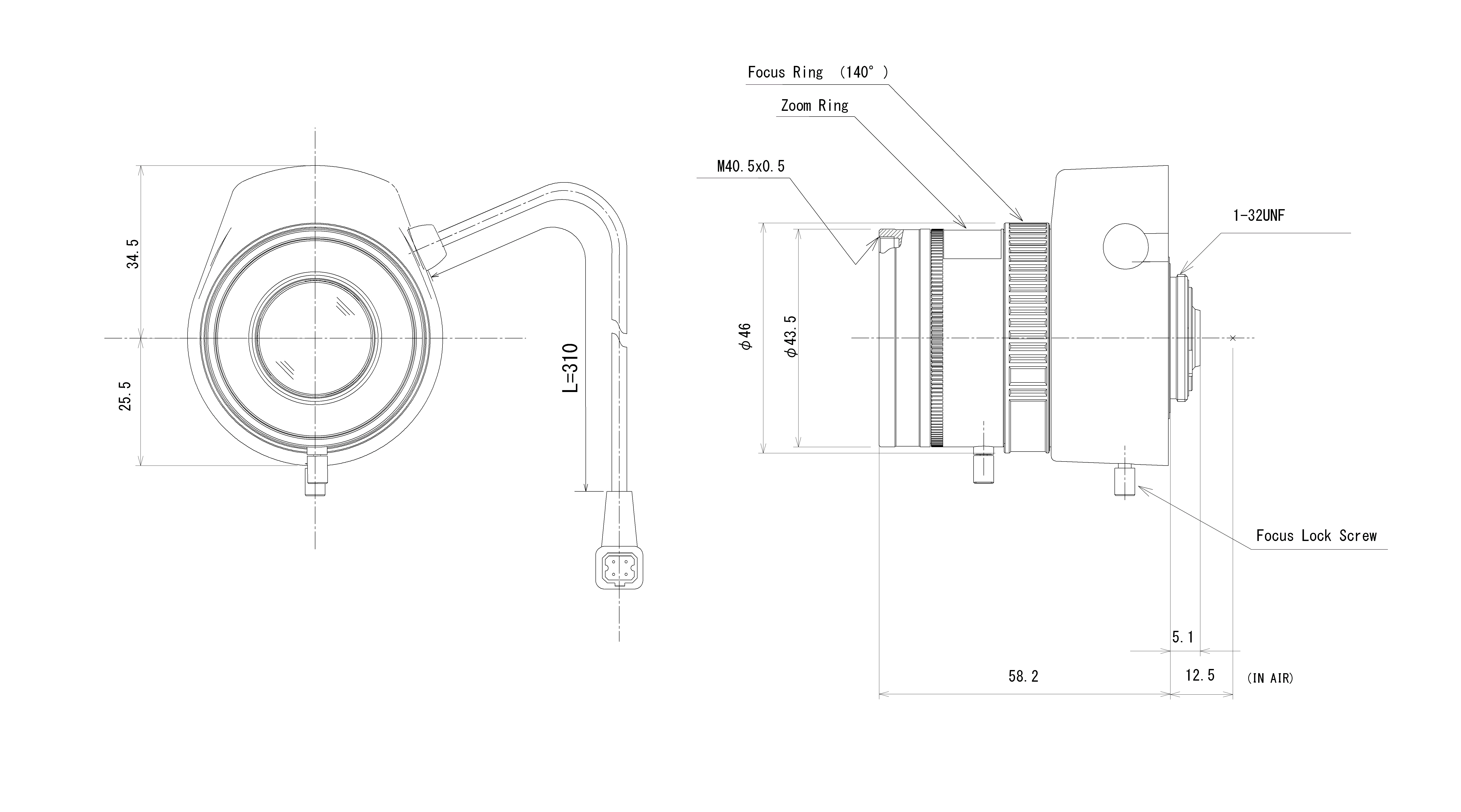

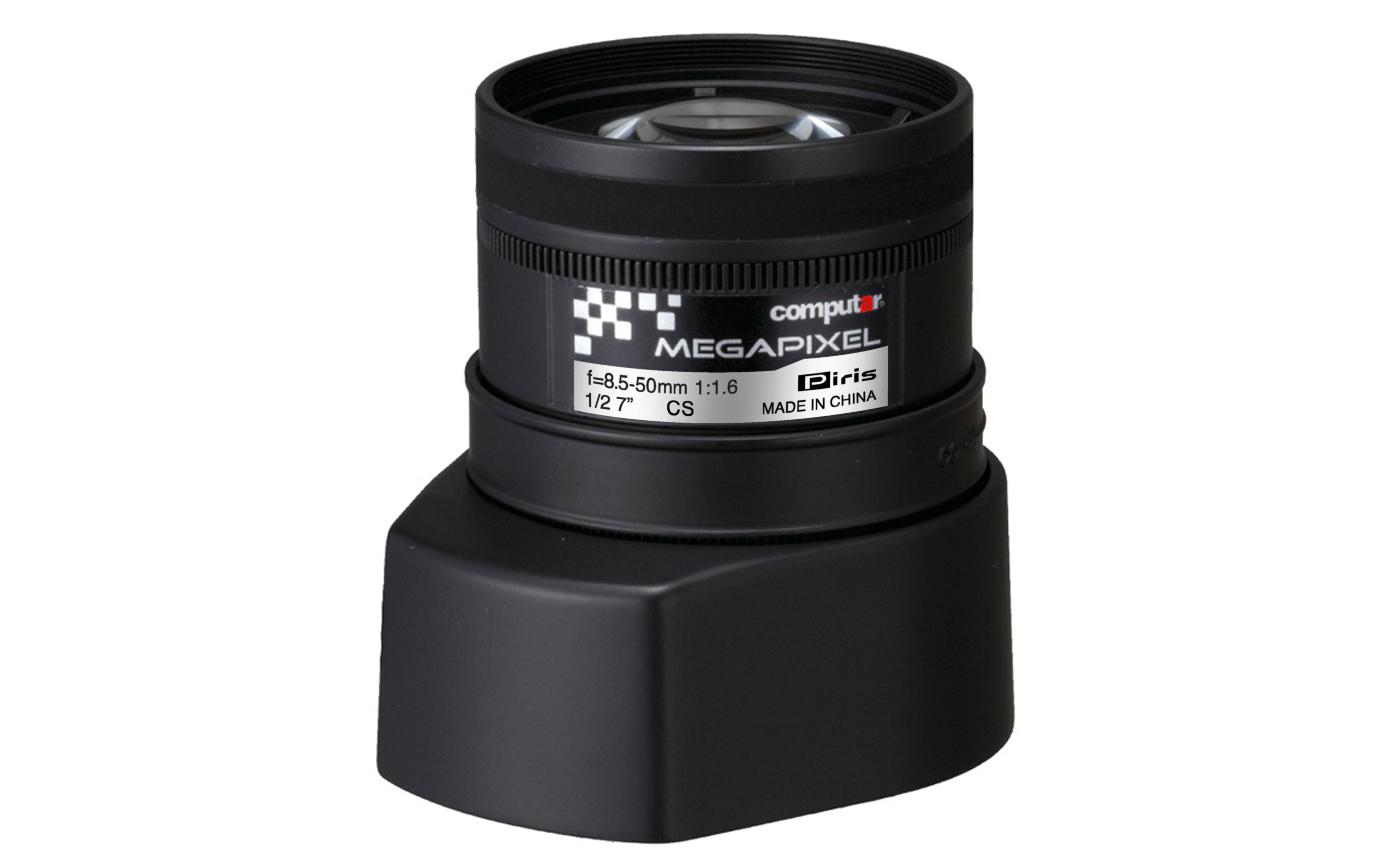

| AG6Z8516KCS-MP | 1/2.7" | 8.5-50mm | 1.6 | 1m - Inf. | 78g | 2021-01-05 16:56:06 | 3MP | 6.6 | |||||

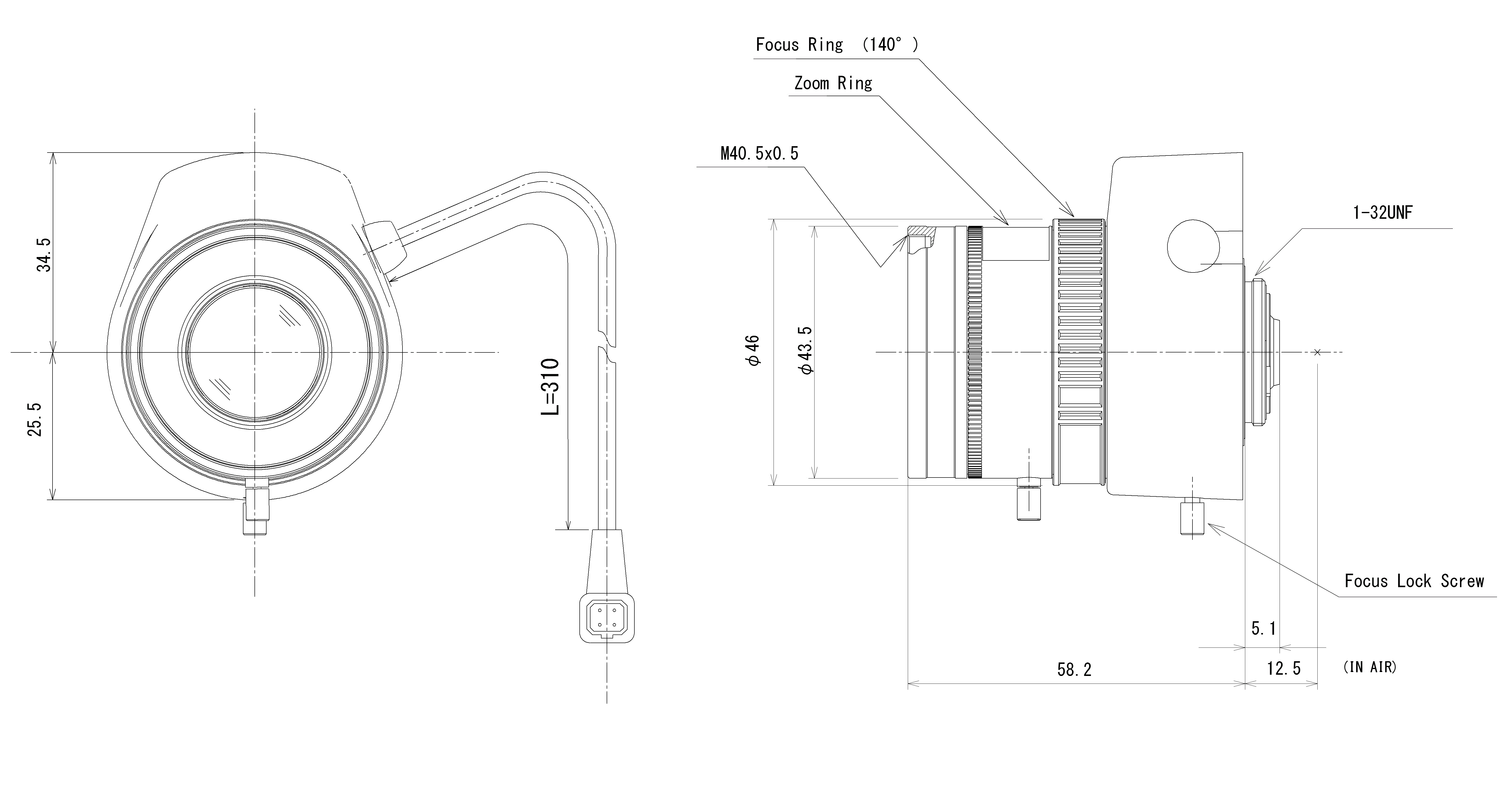

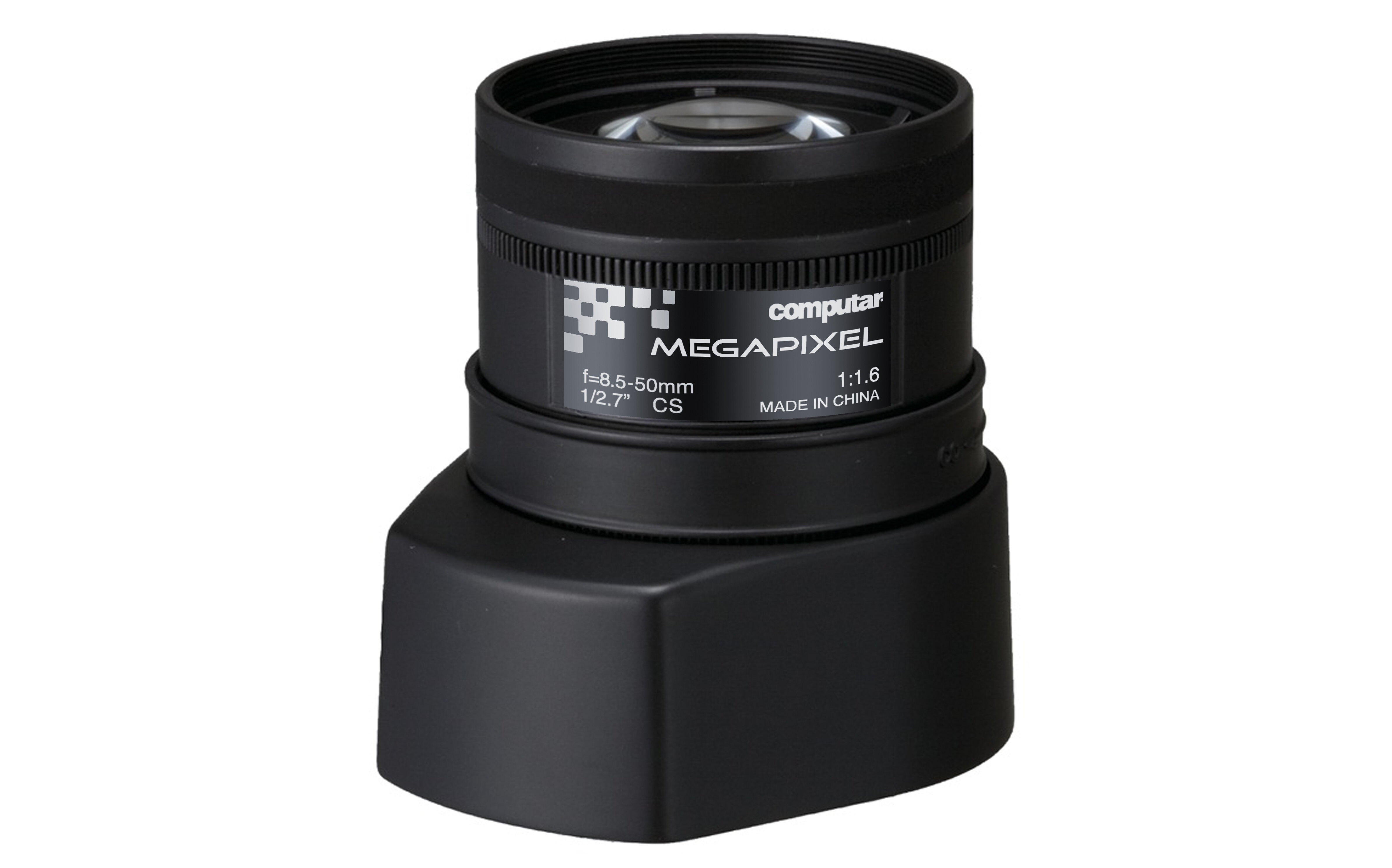

| AG6Z8516FCS-MP | 1/2.7" | 8.5-50mm | 1.6 | 1m - Inf. | 80g | 2021-01-05 16:56:06 | 3MP | 6.6 | |||||
| A6Z8516CS-MP | 1/2.7" | 8.5-50mm | 1.6 | 1m - Inf. | 77g | 2021-01-05 16:56:06 | 3MP | 6.6 | |||||

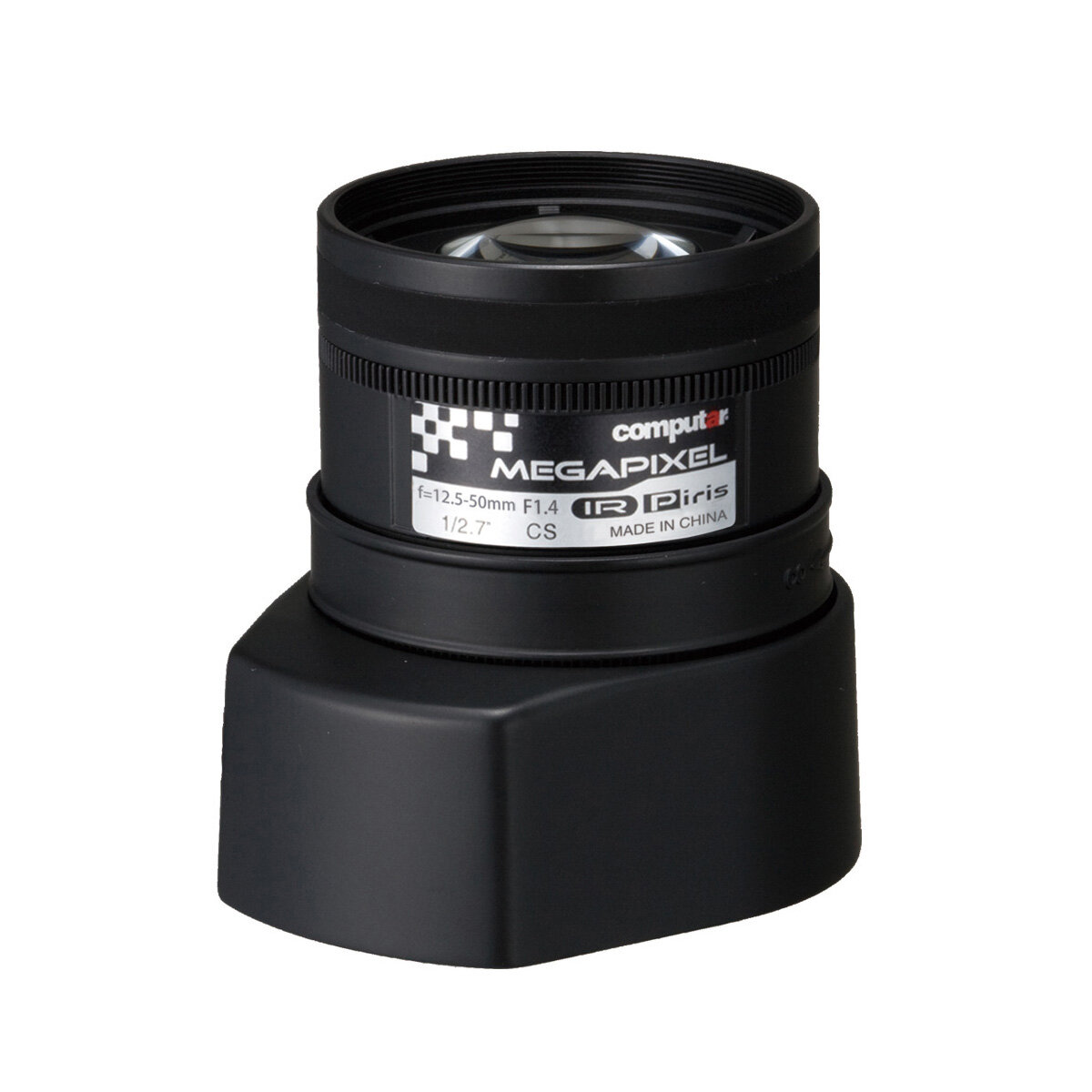

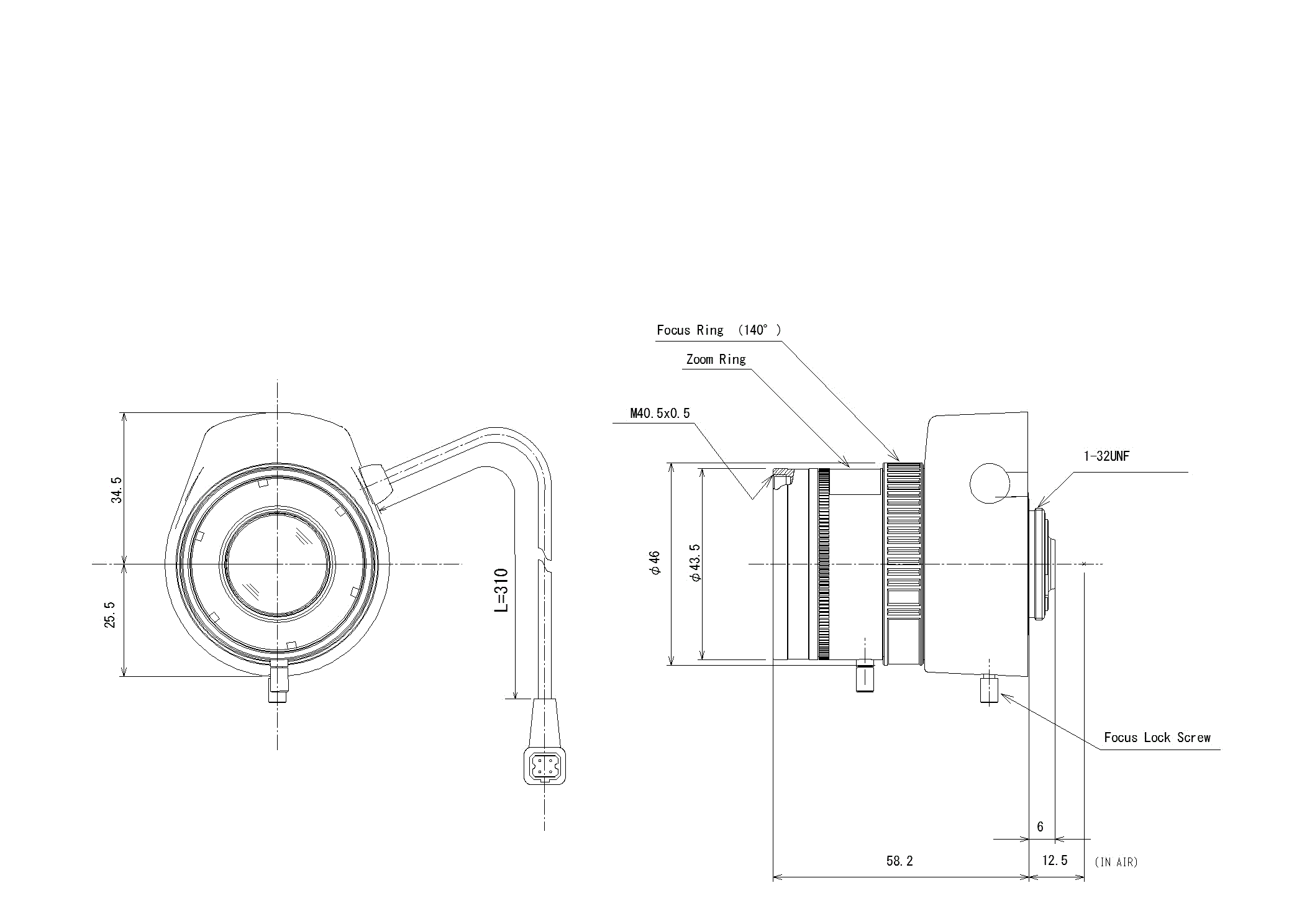

| AG4Z1214KCS-MPIR | 1/2.7" | 12.5-50mm | 1.4 | 1m - Inf. | 81g | 2021-01-05 16:56:06 | 3MP | 6.6 | |||||

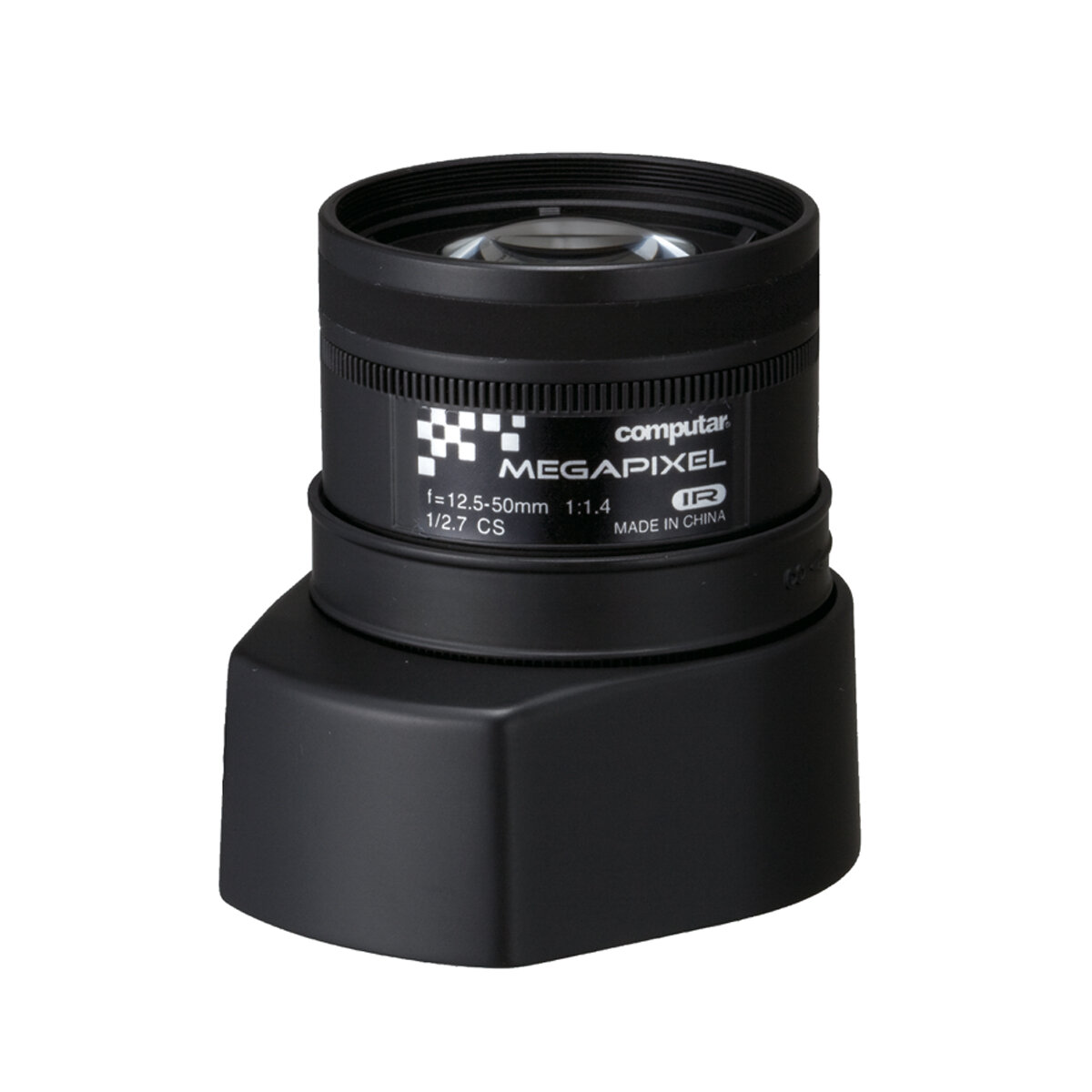

| AG4Z1214FCS-MPIR | 1/2.7" | 12.5-50mm | 1.4 | 1m - Inf. | 83g | 2021-01-05 16:56:06 | 3MP | 6.6 | |||||
| A4Z1214CS-MPIR | 1/2.7" | 12.5-50mm | 1.4 | 1m - Inf. | 80g | 2021-01-05 16:56:06 | 3MP | 6.6 | |||||

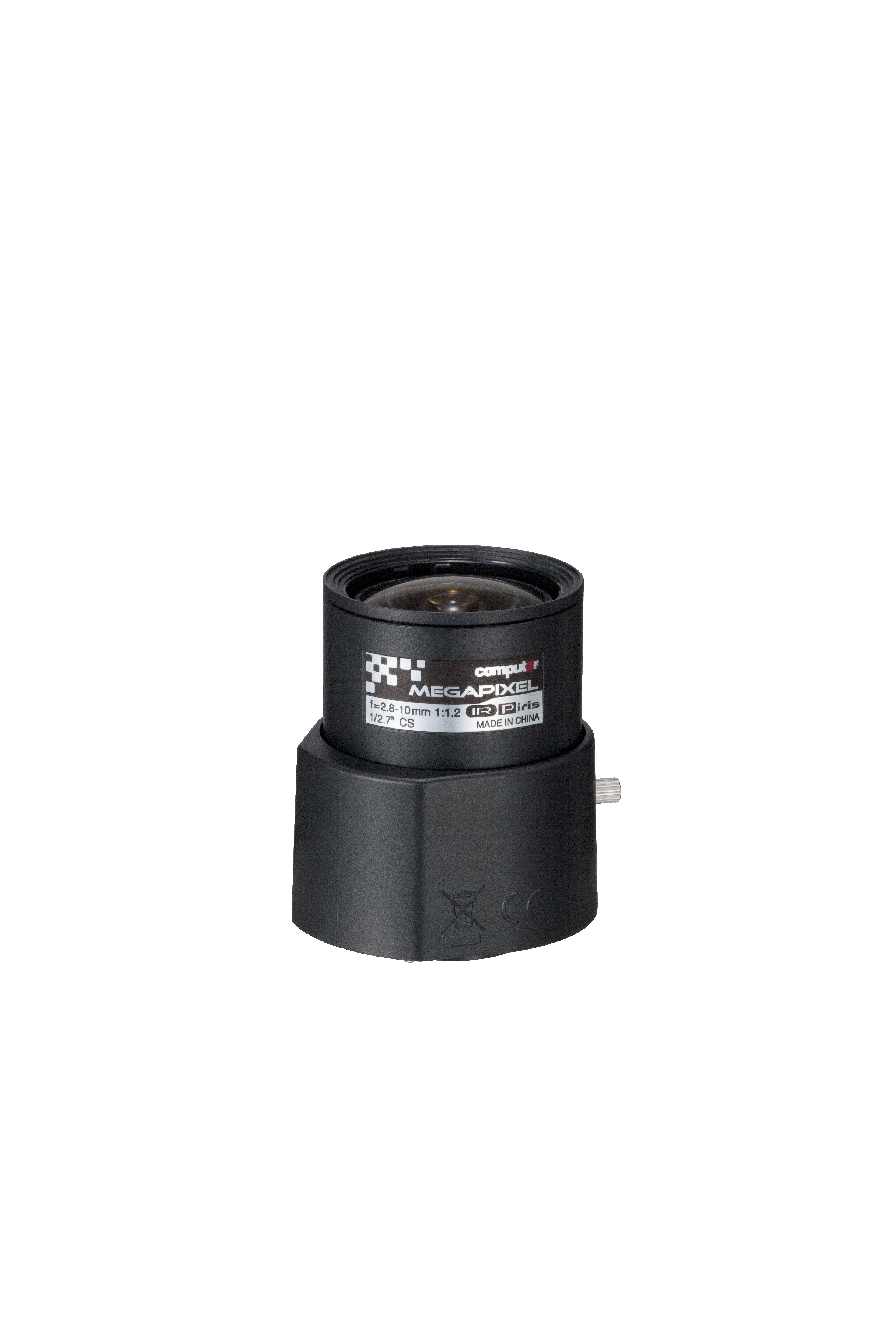

| AG4Z2812KCS-MPIR | 1/2.7" | 2.8-10mm | 1.2 | 0.5m - Inf. | 65g | 2021-01-05 16:56:06 | 3MP | 6.6 | |||||

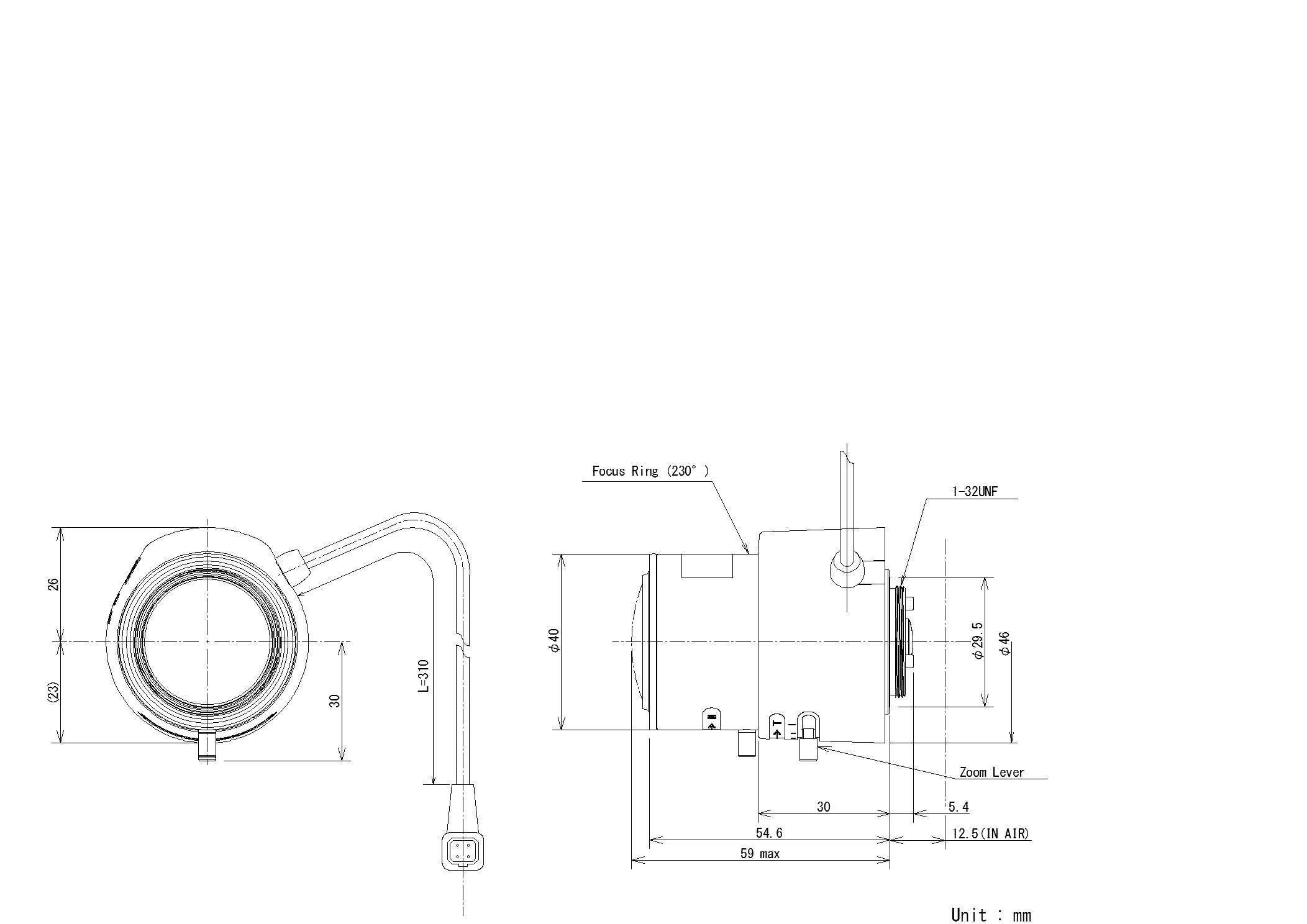

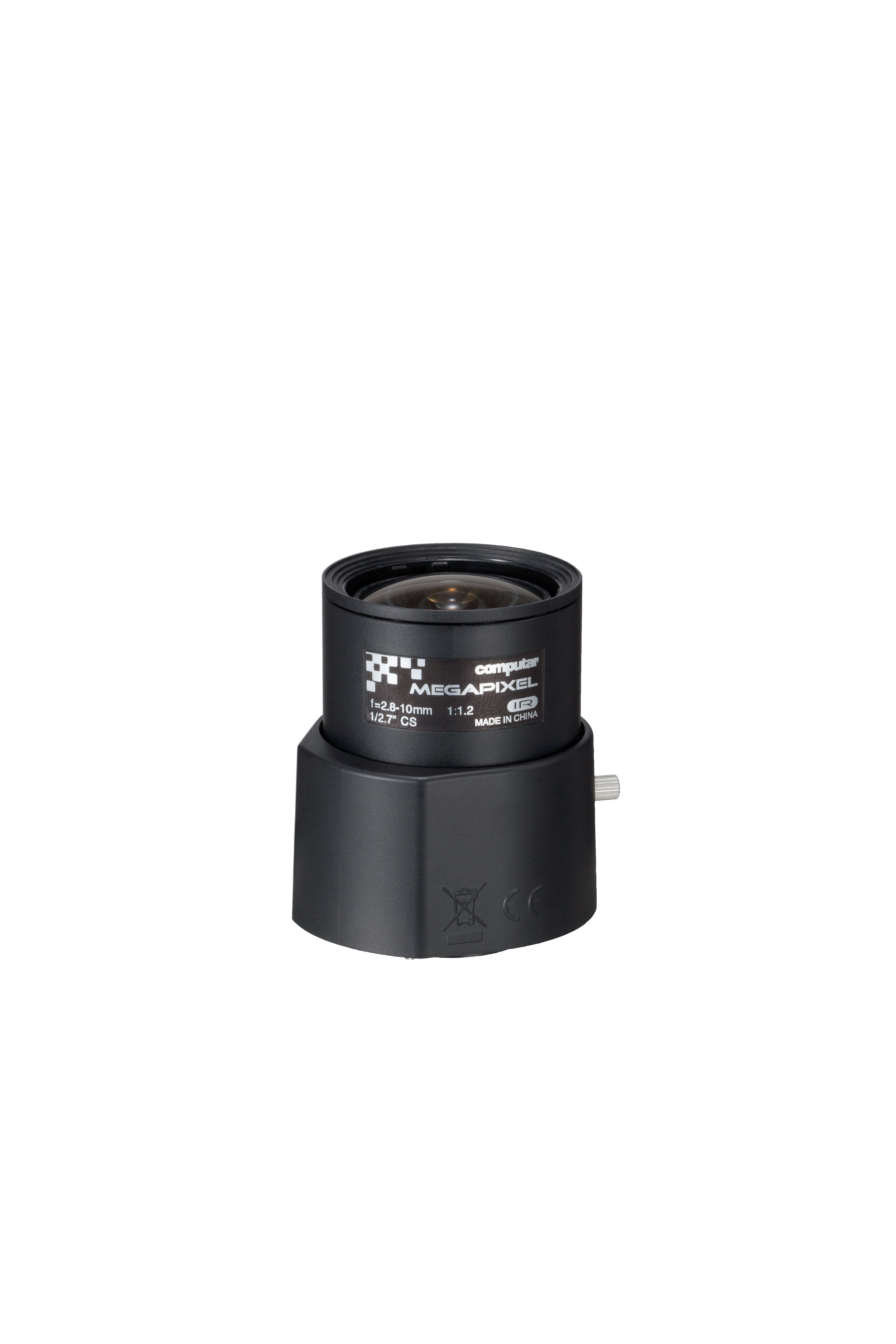

| AG4Z2812FCS-MPIR | 1/2.7" | 2.8-10mm | 1.2 | 0.5m - Inf. | 66g | 2021-01-05 16:56:06 | 3MP | 6.6 | |||||
| A4Z2812CS-MPIR | 1/2.7" | 2.8-10mm | 1.2 | 0.5m - Inf. | 63g | 2021-01-05 16:56:06 | 3MP | 6.6 |
