向右滚动表格即可下载外观图纸和技术信息。
向右滚动表格即可下载外观图和技术信息。
|
机型名称
|
传感器尺寸
|
焦距
|
F値
|
拍摄距离
|
失真
|
重量
|
相关图像
|
参数表
|
CAD图纸
|
技术资料
|
date | resolution | image circle |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

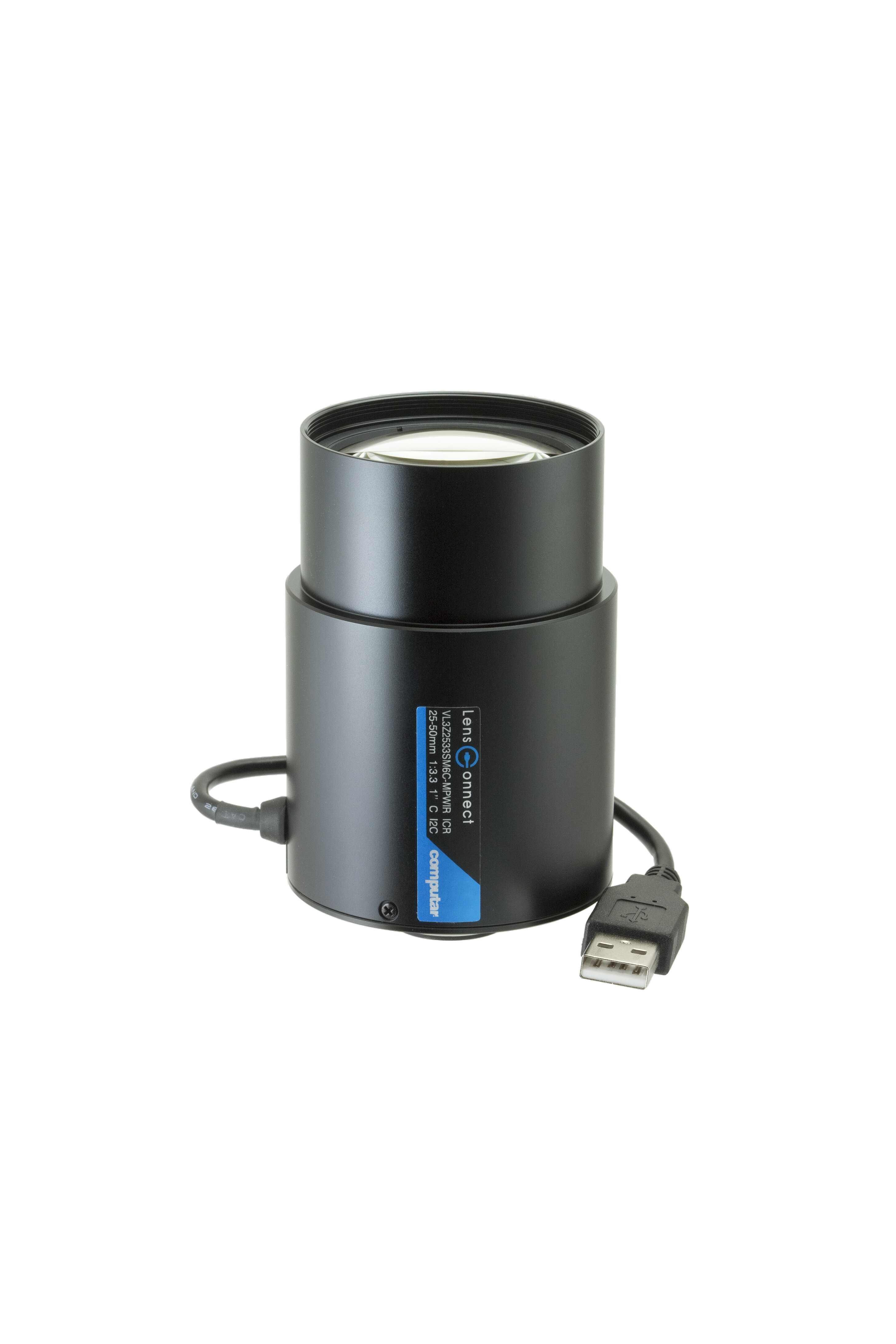

| VL2Z2533UM6C-MPWIR | 1 | 25-50mm | 3.3 | 1m - Inf. | 269g | 2024-08-20 17:28:53 | 9MP | 16 | |||||

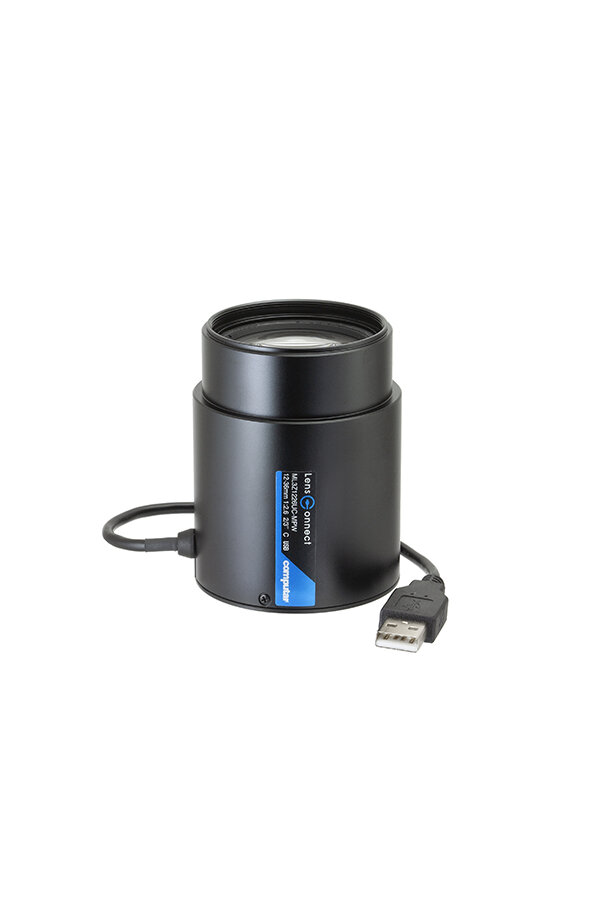

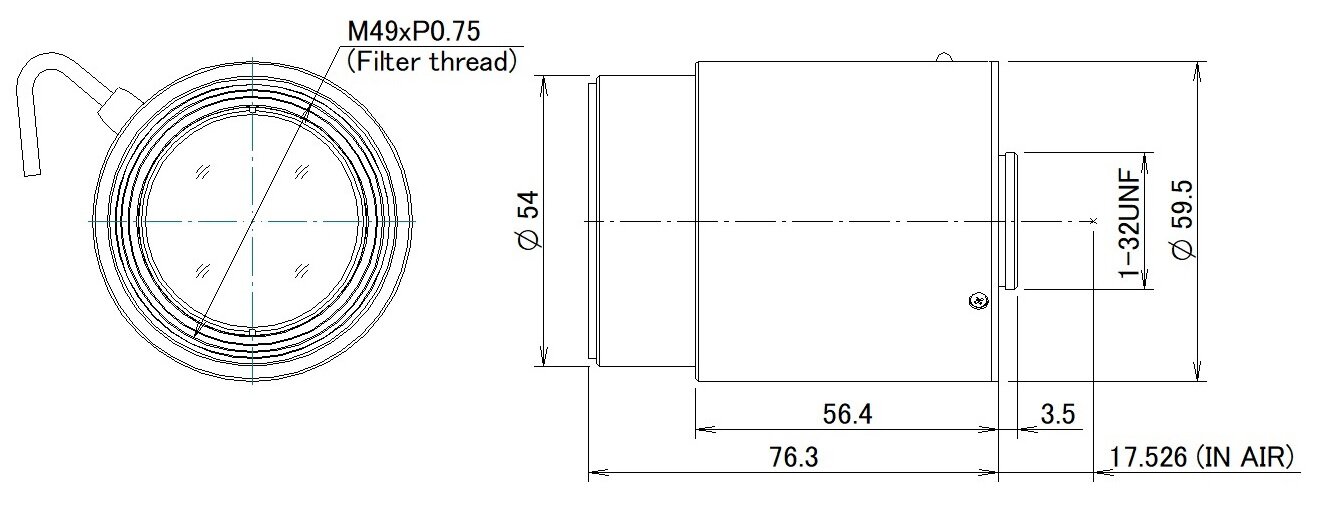

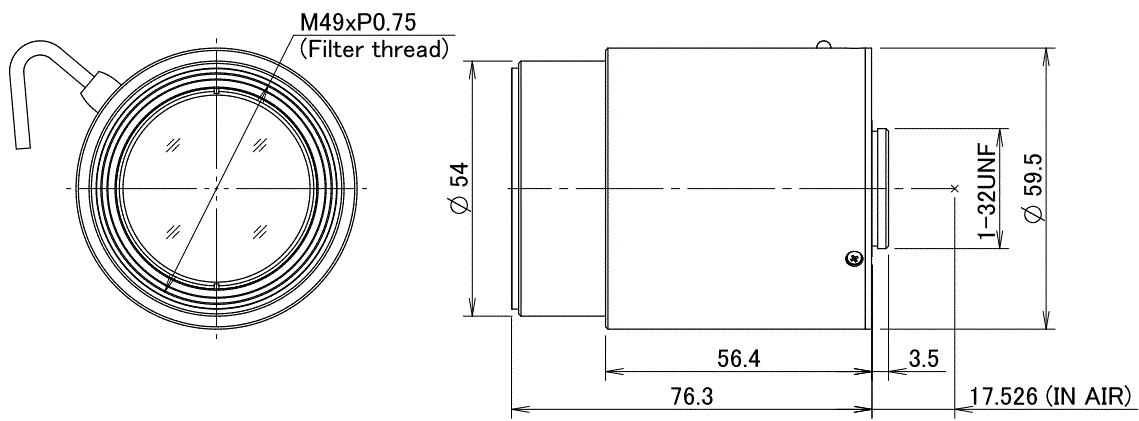

| ML3Z1226UC-MPW | 2/3 | 12-36mm | 2.6 | 0.1m(W) - Inf. | 247g | 2023-12-19 15:42:48 | 9MP | 11.8 | |||||
| DL5028UC-MPY | 1/1.1 | 50mm | 2.8 | 0.2m - Inf. | 0.0%(y=7.2) | 173g | 2021-01-05 16:56:06 | 12MP | 14.4 | ||||
| DL3525UC-MPY | 1/1.1 | 35mm | 2.5 | 0.16m - Inf. | 0.0%(y=7.2) | 160g | 2021-01-05 16:56:06 | 12MP | 14.4 | ||||
| DL2523UC-MPY | 1/1.1 | 25mm | 2.3 | 0.12m - Inf. | 0.1%(y=7.2) | 166g | 2021-01-05 16:56:06 | 12MP | 14.4 | ||||
| DL1623UC-MPY | 1/1.1 | 16mm | 2.3 | 0.11m - Inf. | 0.0%(y=7.2) | 173g | 2021-01-05 16:56:06 | 12MP,8MP | 14.4 | ||||
| DL1224UC-MPY | 1/1.1 | 12mm | 2.4 | 0.1m - Inf. | -0.1%(y=7.2) | 163g | 2021-01-05 16:56:06 | 8MP | 14.4 | ||||
| DL0828UC-MPY | 1/1.1 | 8mm | 2.8 | 0.1m - Inf. | 0.0%(y=7.2) | 178g | 2021-01-05 16:56:06 | 12MP | 14.4 | ||||

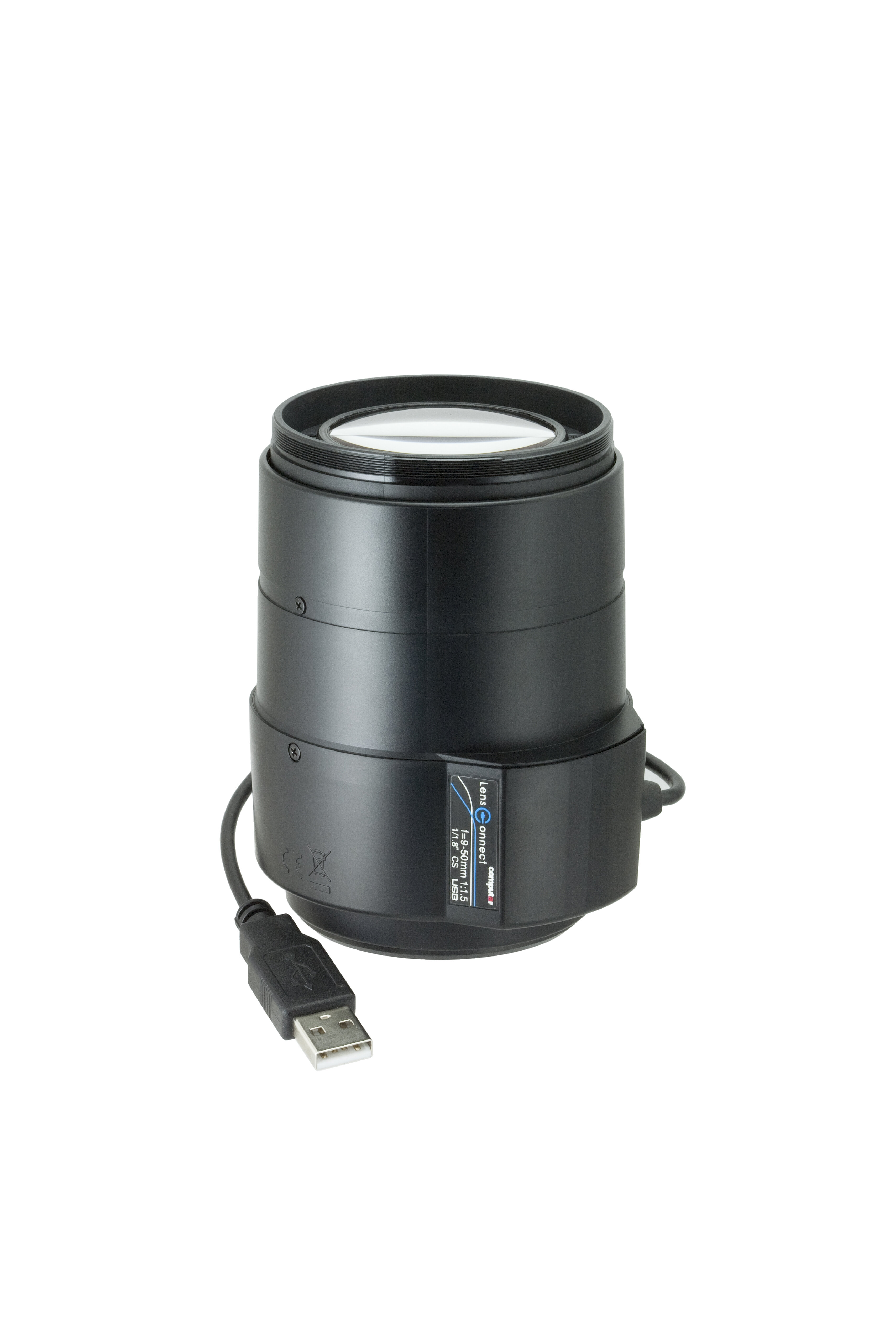

| EL6Z0915UCS-MPWIR | 1/1.8" | 9-50mm | 1.5 | 3m - Inf. | 299g | 2021-01-05 16:00:02 | 6MP | 8.9 | |||||

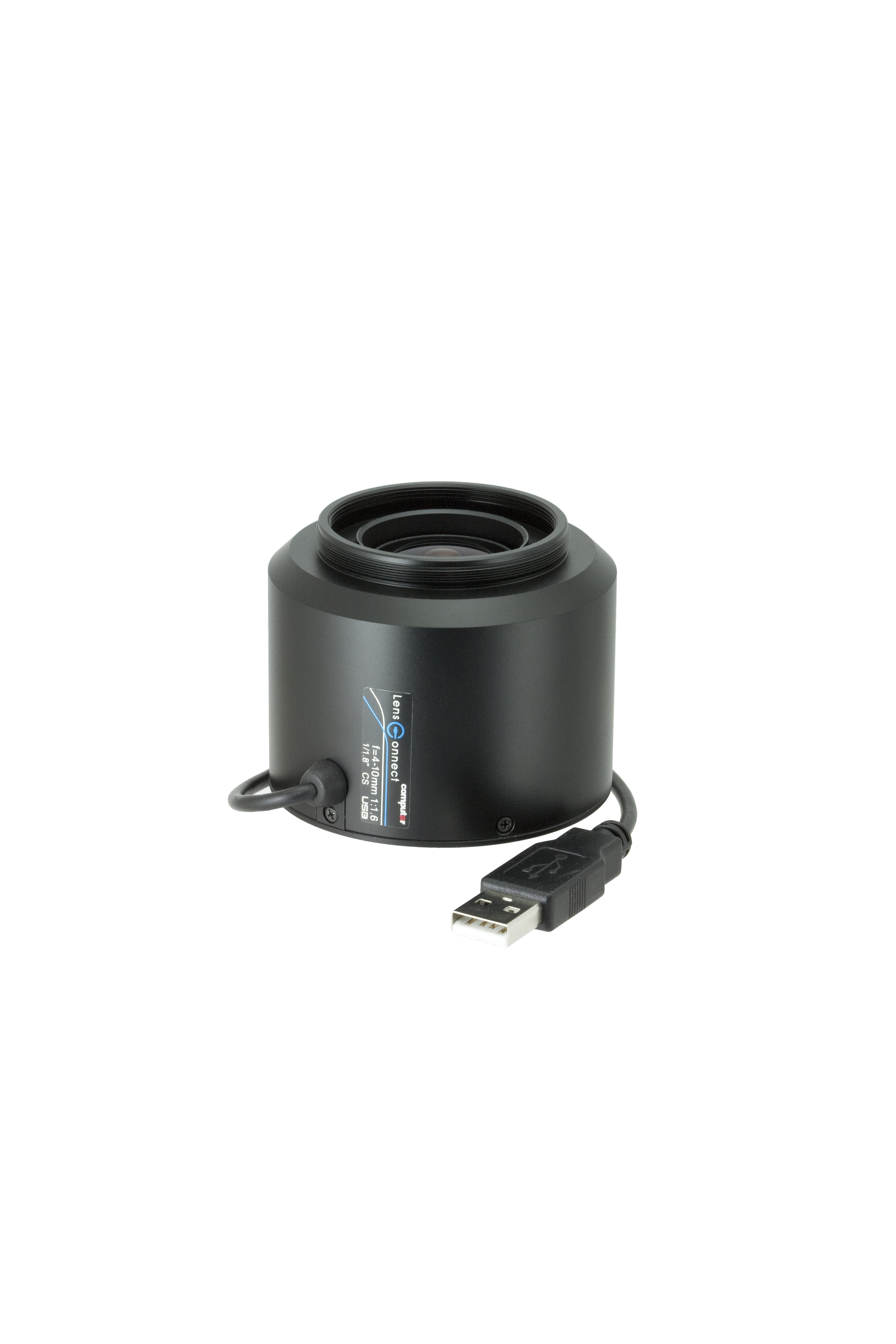

| EL3Z0416UCS-MPWIR | 1/1.8 | 4.0-10mm | 1.6 | 0.2m - Inf. | 161g | 2021-01-05 16:00:01 | 5MP | 8.9 | |||||

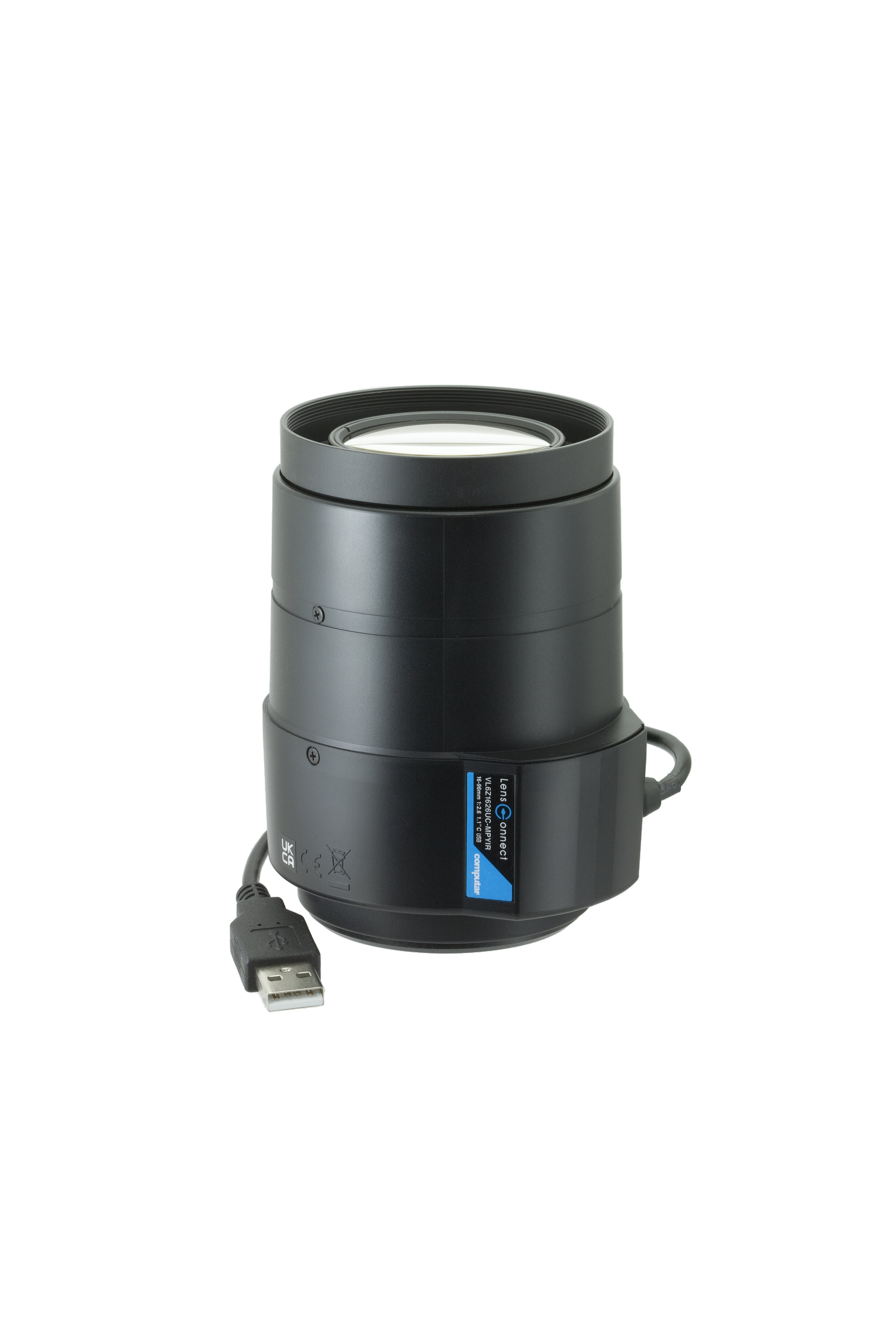

| VL6Z1626UC-MPYIR | 1.1 | 16-96mm | 2.6 | 3m - Inf. | 330g | 2021-01-05 16:00:00 | 12MP | 17.6 |
