- 支持2/3英寸、1/1.8英寸、 1/2英寸 Full HD传感器，电动变倍镜头系列
- 从17倍到66倍，f=8.8mm至1550mm，产品一应俱全
- DC自动光圈，支持预置位，镜头前方设置有滤光片架设置
- 以安防镜头为主，支持各种用途
※按订单生产，交货时间敬请垂询。
※按订单生产，交货时间敬请垂询。
向右滚动表格即可下载外观图纸和技术信息。
向右滚动表格即可下载外观图和技术信息。
|
机型名称
|
传感器尺寸
|
焦距
|
F値
|
拍摄距离
|
失真
|
重量
|
相关图像
|
参数表
|
CAD图纸
|
技术资料
|
date | resolution | image circle |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

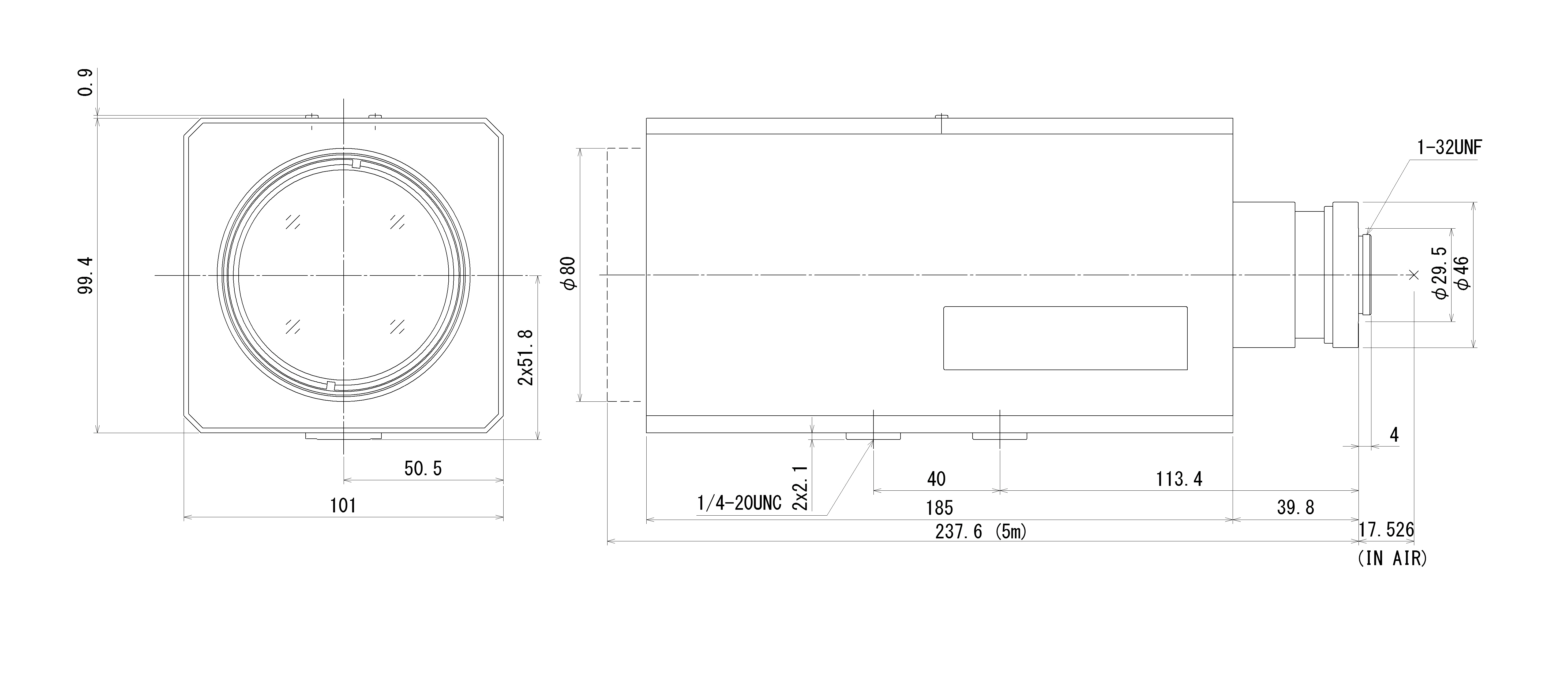

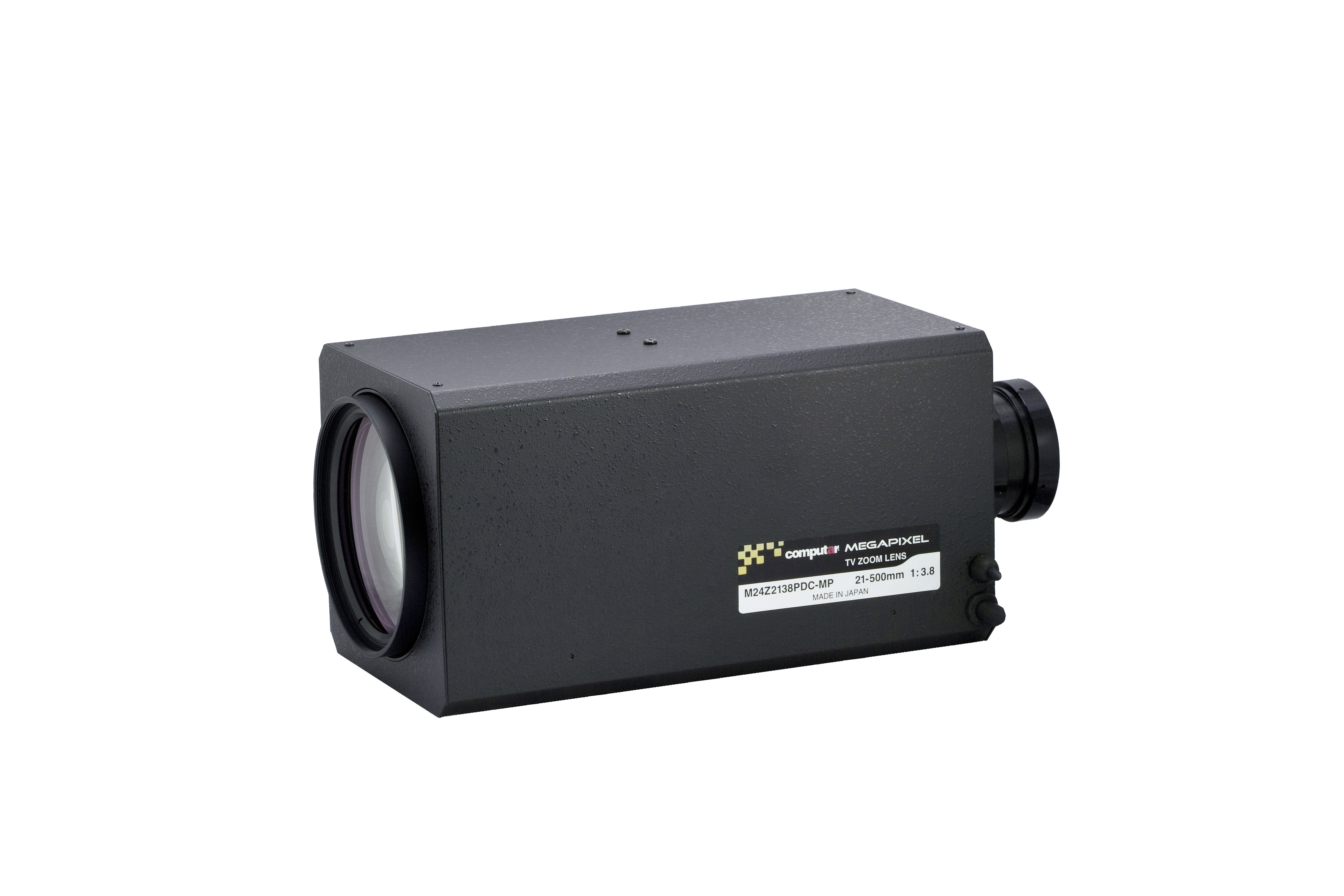

| M24Z2138PDC-MP | 2/3" | 21-500mm | 3.8 | 5m - Inf. | 2240g | 2021-01-05 16:56:06 | 2MP | 11 | |||||

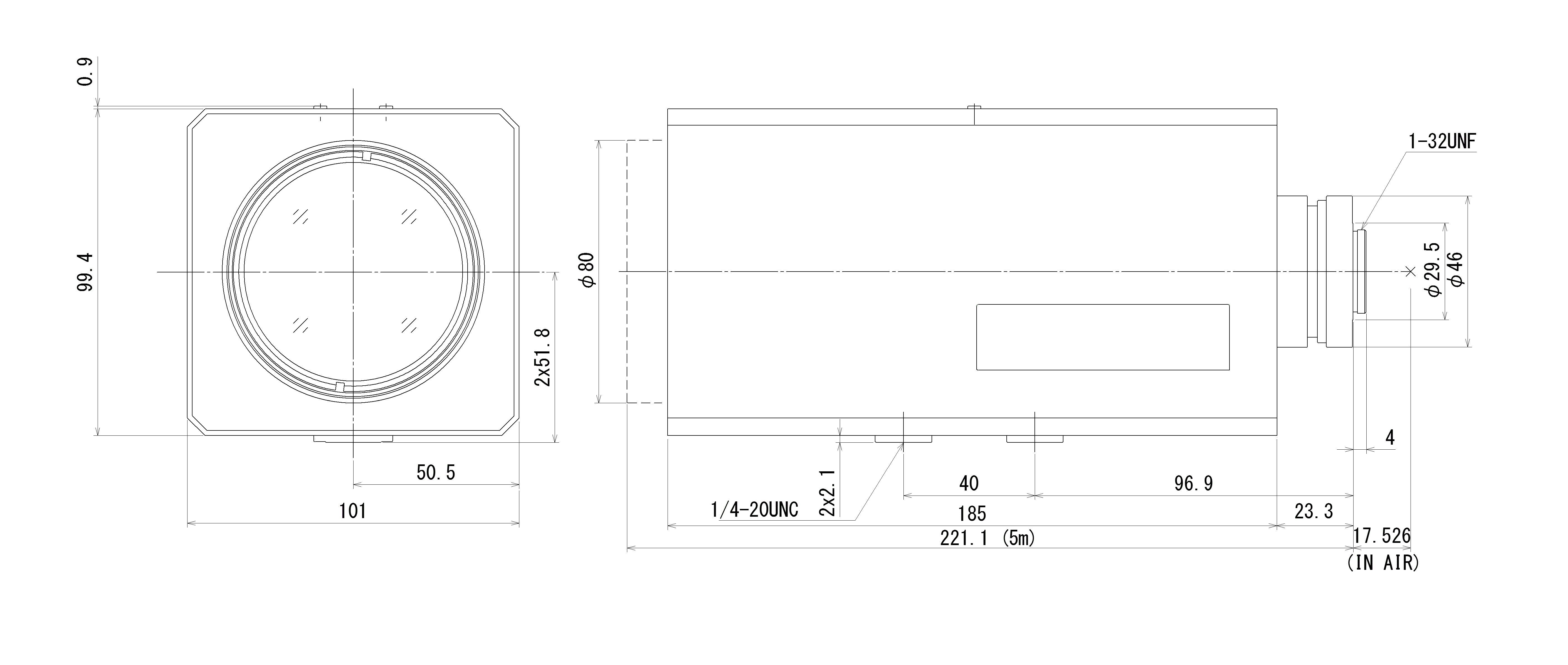

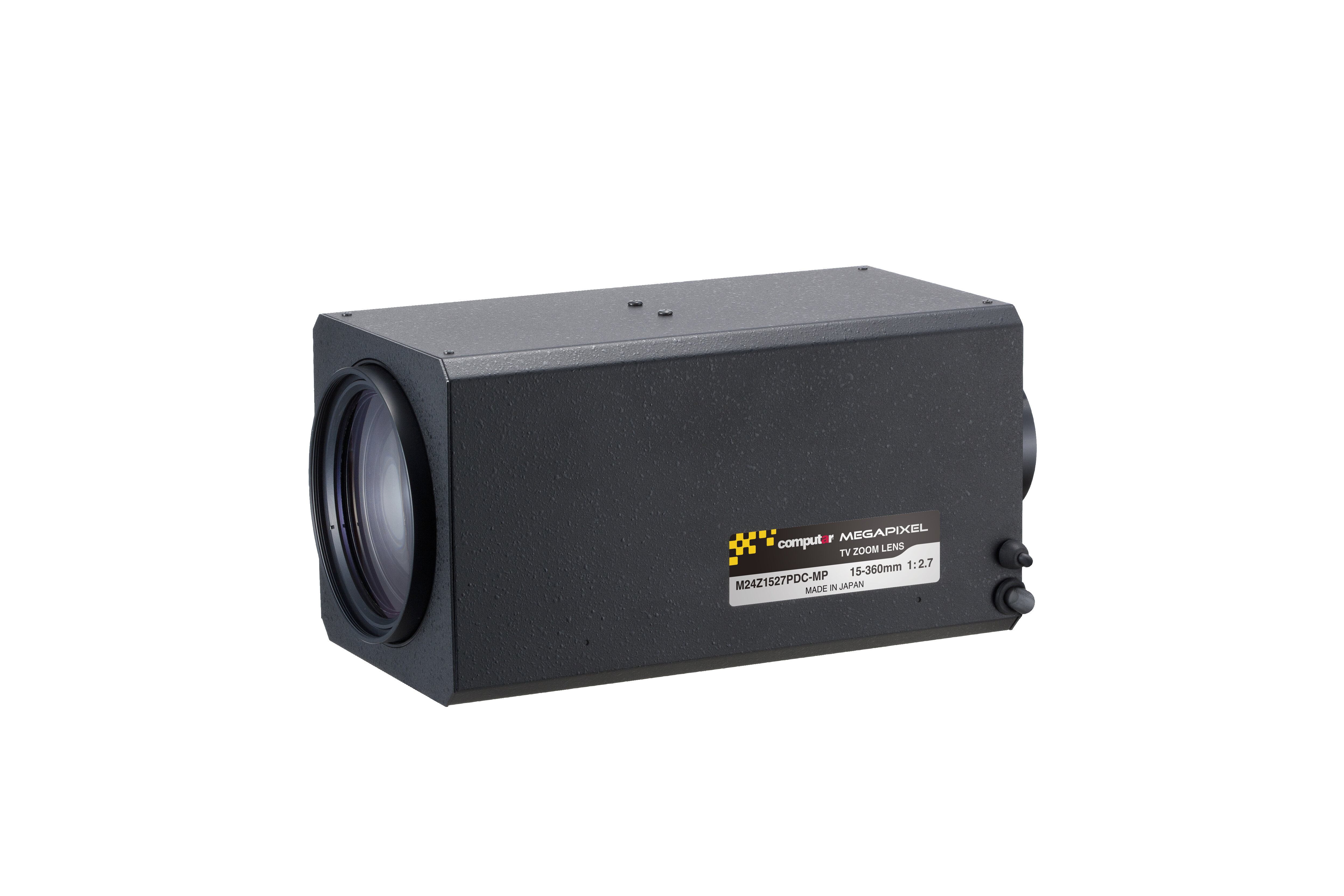

| M24Z1527PDC-MP | 2/3" | 15-360mm | 2.7 | 5m - Inf. | 2180g | 2021-01-05 16:56:06 | 2MP | 11 | |||||

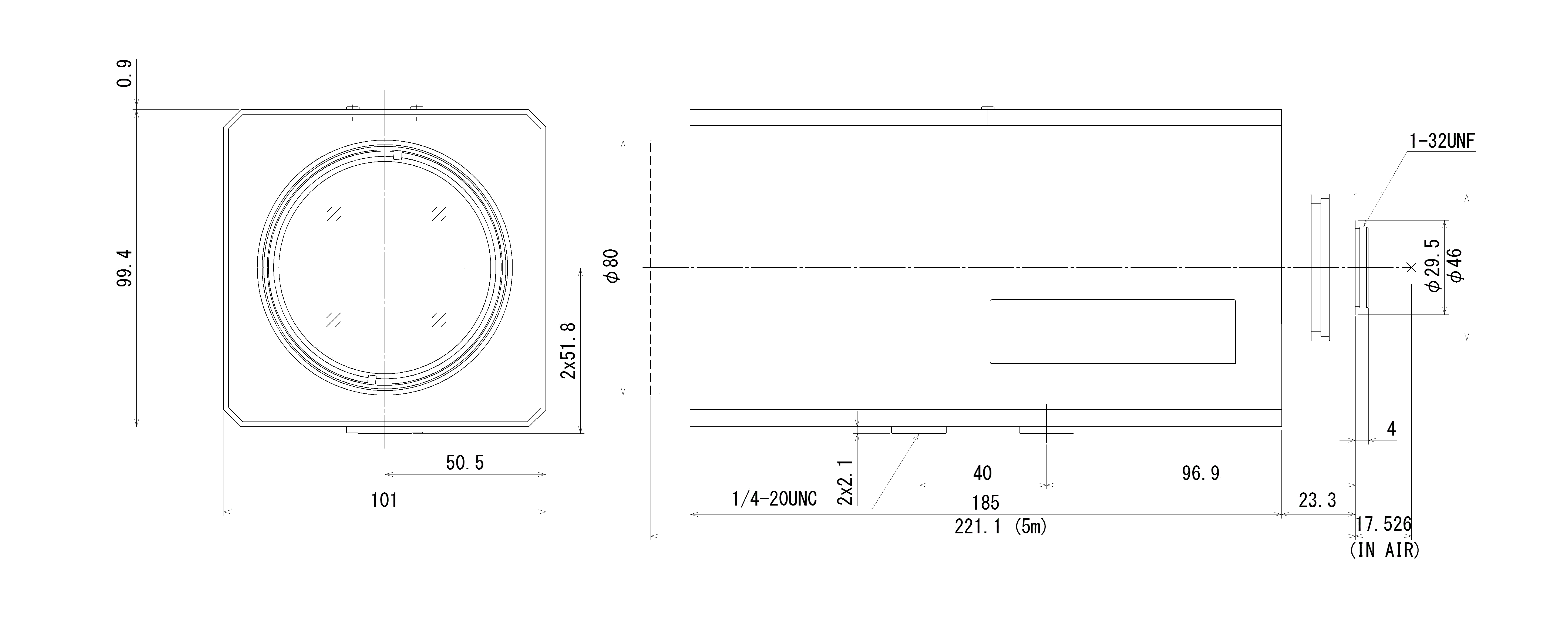

| M24Z1527MP-MP | 2/3" | 15-360mm | 2.7 | 5m - Inf. | 2240g | 2021-01-05 16:56:06 | 2MP | 11 | |||||
| E66Z1635PDC-MPIR | 1/1.8" | 16.7-1100mm | 3.5 | 5m - Inf. | 5800g | 2021-01-05 16:56:06 | 2MP | 9 | |||||
| E66Z1635PDC-MP | 1/1.8" | 16.7-1100mm | 3.5 | 5m - Inf. | 5300g | 2021-01-05 16:56:06 | 2MP | 9 | |||||
| E24Z1018PDC-MPIR | 1/1.8" | 10-240mm | 1.8 | 4m - Inf. | 2140g | 2021-01-05 16:56:06 | 3MP | 8.9 | |||||
| E24Z1018PDC-MP | 1/1.8" | 10-240mm | 1.8 | 4m - Inf. | 2060g | 2021-01-05 16:56:06 | 3MP | 8.9 | |||||
| E17Z8816PDC-MP | 1/1.8" | 8.8-150mm | 1.6 | 4m - Inf. | 1160g | 2021-01-05 16:56:06 | 3MP | 8.9 | |||||
| H62Z1235PDC-MPIR-EX | 1/2" | 25-1550mm | 3.5 | 5m - Inf. | 6000g | 2021-01-05 16:56:06 | 2MP | 8 | |||||
| H62Z1235PDC-MPIR | 1/2" | 12.5-775mm | 3.5 | 5m - Inf. | 5800g | 2021-01-05 16:56:06 | 2MP | 8 | |||||
| H62Z1235PDC-MP2 | 1/2" | 12.5-775mm | 3.5 | 5m - Inf. | 5200g | 2021-01-05 16:56:06 | 2MP | 8 | |||||
| H35Z1015PDC-MP | 1/2" | 10-350mm | 1.5 | 2.5m - Inf. | 1880g | 2021-01-05 16:56:06 | 2MP | 8 |
