系列概要

向右滚动表格即可下载外观图纸和技术信息。

  • 传感器尺寸
    • 2/3"
  • 焦距
    • 8mm
    • 12mm
    • 16mm
    • 50mm
    • 35mm
    • 25mm
  • 分辨率
    • 5MP
  • 接口
    • C
  • 镜头类型
    • 定焦
  • 光圈
    • FIX
  • 其他
    • IR修正
    • SWIR
    • LWIR
    • 除雾
    • 鱼眼
    • 耐震
    • ICS
    • LensConnect
    • Z/F控制
    • 光圈控制
    • 下单后生产
  • 解决方案
    • 机器视觉
    • 安防
    • ITS
    • 拓展新领域

机型一览

向右滚动表格即可下载外观图和技术信息。

left
机型名称
传感器尺寸
焦距
F値
拍摄距离
失真
重量
相关图像
参数表
CAD图纸
技术资料
date resolution image circle
M5080-MPW2-R 2/3" 50mm 8.0 0.4m - Inf. 0.00%(y=5.5) 62g
2D DXF
3D STEP IGES
2021-01-05 16:56:06 5MP 11
M5056-MPW2-R 2/3" 50mm 5.6 0.4m - Inf. 0.00%(y=5.5) 62g
2D DXF
3D STEP IGES
2021-01-05 16:56:06 5MP 11
M5040-MPW2-R 2/3" 50mm 4.0 0.4m - Inf. 0.00%(y=5.5) 62g
2D DXF
3D STEP IGES
2021-01-05 16:56:06 5MP 11

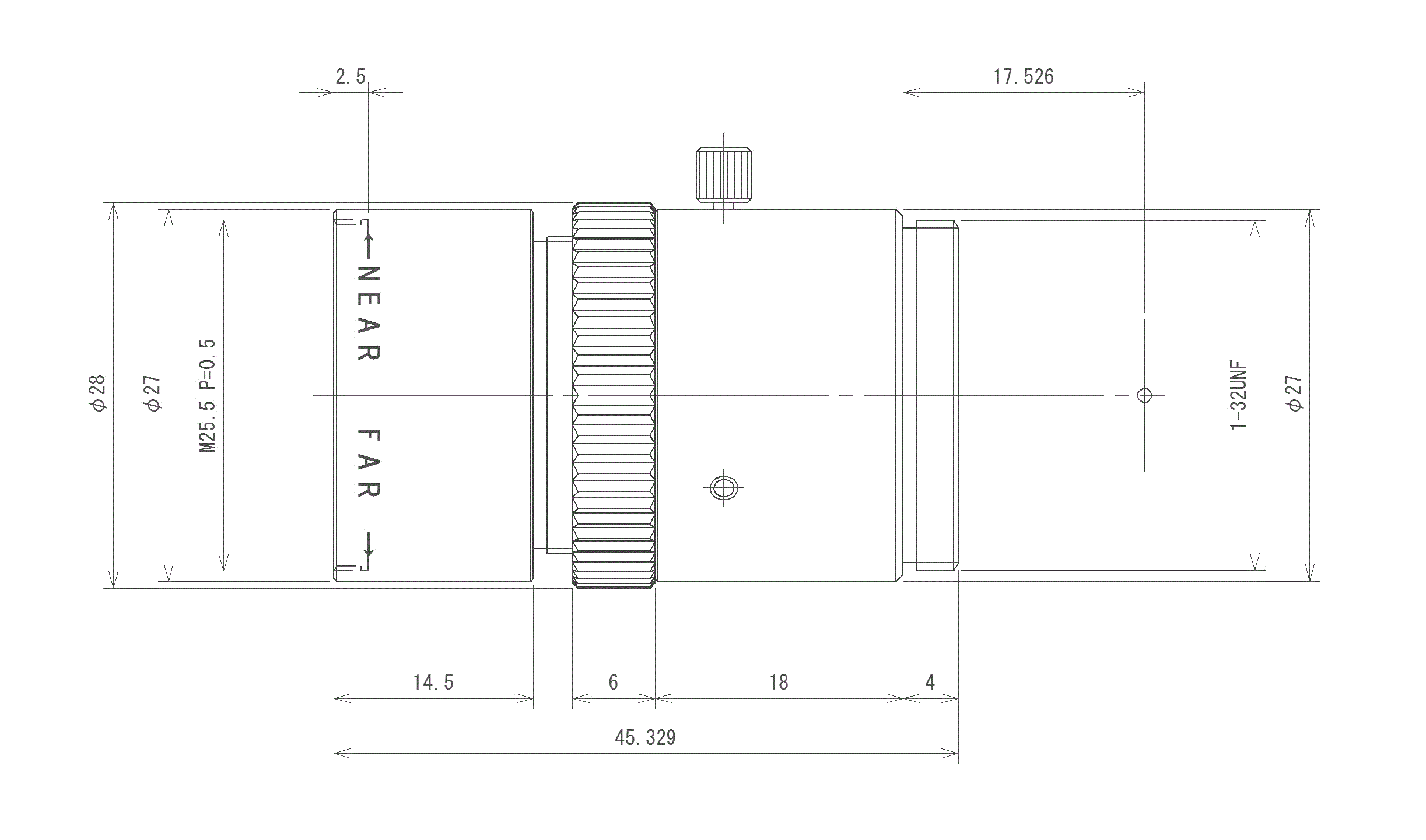

M5028-MPW2-R 2/3" 50mm 2.8 0.4m - Inf. 0.00%(y=5.5) 62g
2D DXF
3D STEP IGES
2021-01-05 16:56:06 5MP 11
M3580-MPW2-R 2/3" 35mm 8.0 0.2m - Inf. 0.32%(y=5.5) 45g
2D DXF
3D STEP IGES
2021-01-05 16:56:06 5MP 11
M3556-MPW2-R 2/3" 35mm 5.6 0.2m - Inf. 0.32%(y=5.5) 45g
2D DXF
3D STEP IGES
2021-01-05 16:56:06 5MP 11
M3540-MPW2-R 2/3" 35mm 4.0 0.2m - Inf. 0.32%(y=5.5) 45g
2D DXF
3D STEP IGES
2021-01-05 16:56:06 5MP 11

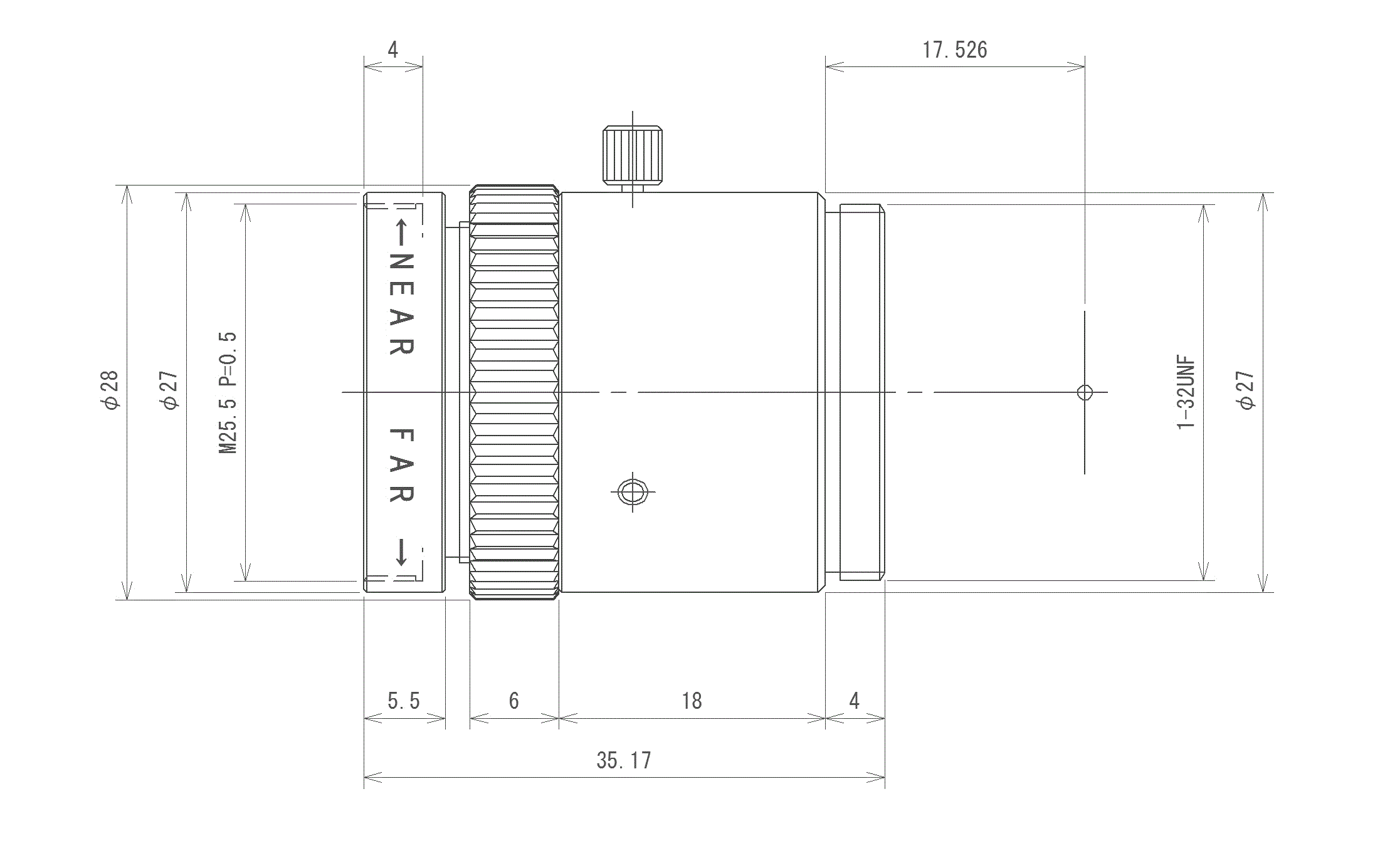

M3520-MPW2-R 2/3" 35mm 2.0 0.2m - Inf. 0.32%(y=5.5) 45g
2D DXF
3D STEP IGES
2021-01-05 16:56:06 5MP 11
M2580-MPW2-R 2/3" 25mm 8.0 0.2m - Inf. 0.52%(y=5.5) 45g
2D DXF
3D STEP IGES
2021-01-05 16:56:06 5MP 11
M2556-MPW2-R 2/3" 25mm 5.6 0.2m - Inf. 0.52%(y=5.5) 45g
2D DXF
3D STEP IGES
2021-01-05 16:56:06 5MP 11
M2540-MPW2-R 2/3" 25mm 4.0 0.2m - Inf. 0.52%(y=5.5) 45g
2D DXF
3D STEP IGES
2021-01-05 16:56:06 5MP 11

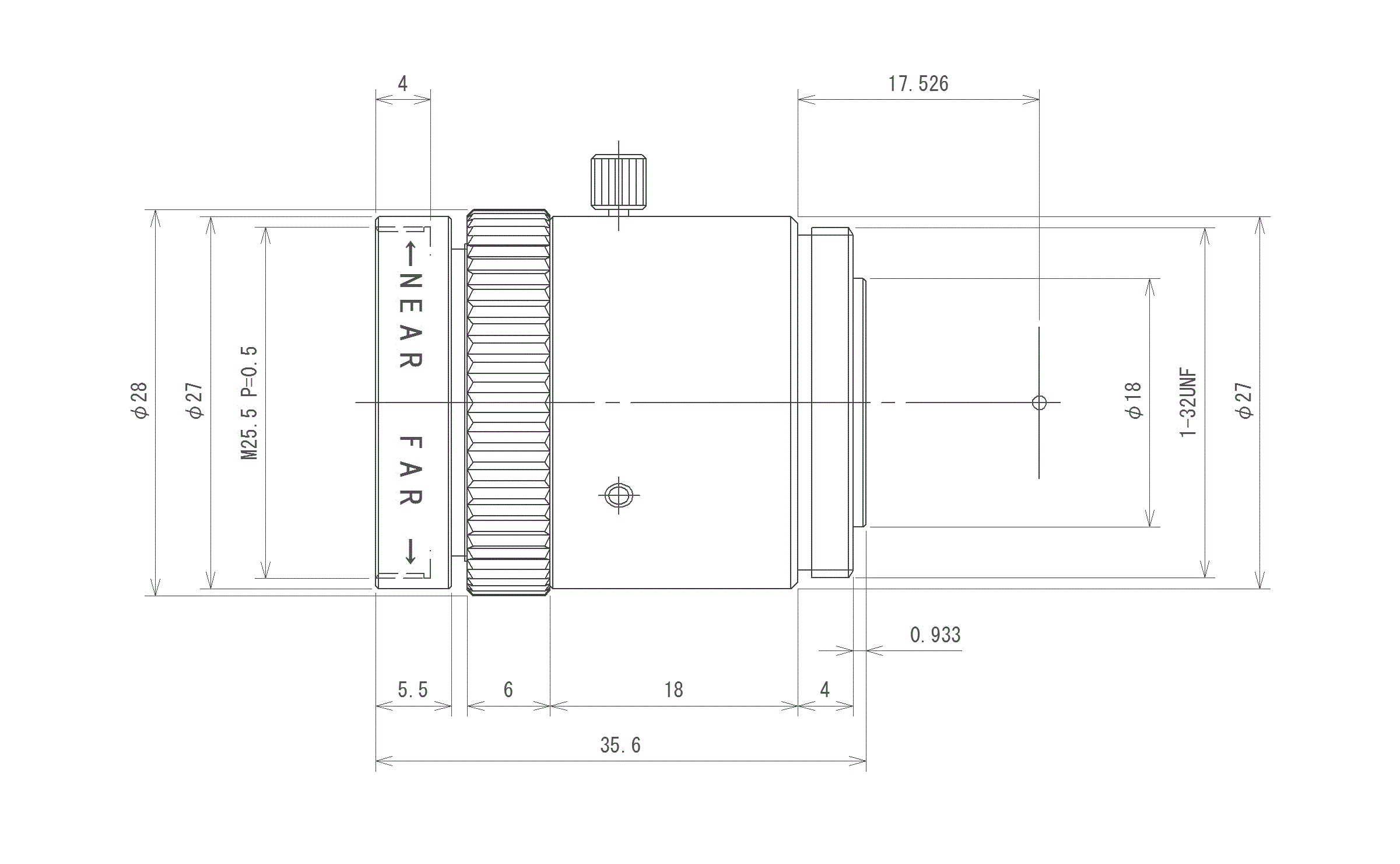

M2518-MPW2-R 2/3" 25mm 1.8 0.2m - Inf. 0.52%(y=5.5) 45g
2D DXF
3D STEP IGES
2021-01-05 16:56:06 5MP 11
M1680-MPW2-R 2/3" 16mm 8.0 0.2m - Inf. 0.59%(y=5.5) 45g
2D DXF
3D STEP IGES
2021-01-05 16:56:06 5MP 11
M1656-MPW2-R 2/3" 16mm 5.6 0.2m - Inf. 0.59%(y=5.5) 45g
2D DXF
3D STEP IGES
2021-01-05 16:56:06 5MP 11
M1640-MPW2-R 2/3" 16mm 4.0 0.2m - Inf. 0.59%(y=5.5) 45g
2D DXF
3D STEP IGES
2021-01-05 16:56:06 5MP 11

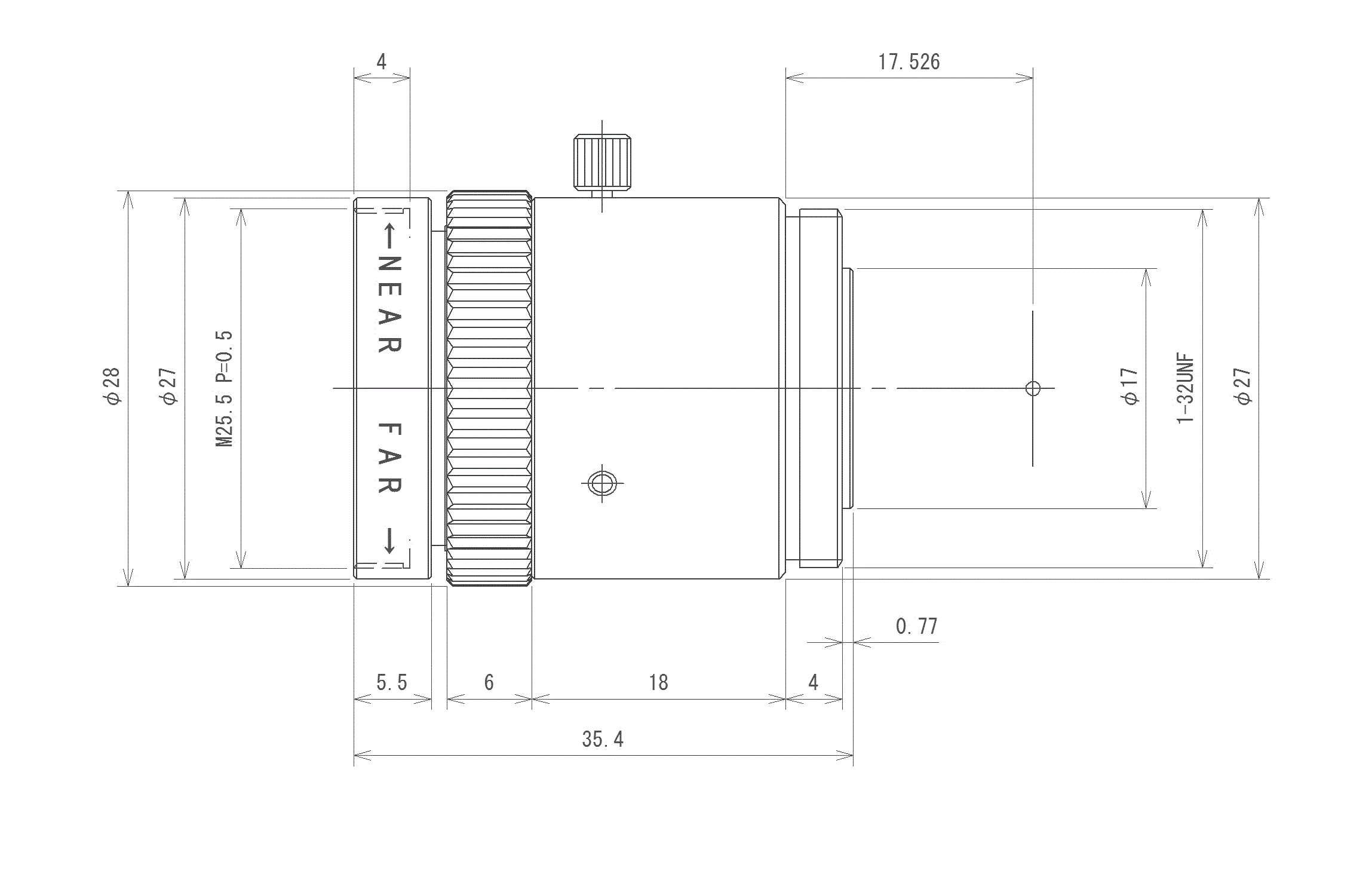

M1620-MPW2-R 2/3" 16mm 2.0 0.2m - Inf. 0.59%(y=5.5) 45g
2D DXF
3D STEP IGES
2021-01-05 16:56:06 5MP 11
M1280-MPW2-R 2/3" 12mm 8.0 0.1m - Inf. 0.64%(y=5.5) 59g
2D DXF
3D STEP IGES
2021-01-05 16:56:06 5MP 11
M1256-MPW2-R 2/3" 12mm 5.6 0.1m - Inf. 0.64%(y=5.5) 59g
2D DXF
3D STEP IGES
2021-01-05 16:56:06 5MP 11
M1240-MPW2-R 2/3" 12mm 4.0 0.1m - Inf. 0.64%(y=5.5) 59g
2D DXF
3D STEP IGES
2021-01-05 16:56:06 5MP 11

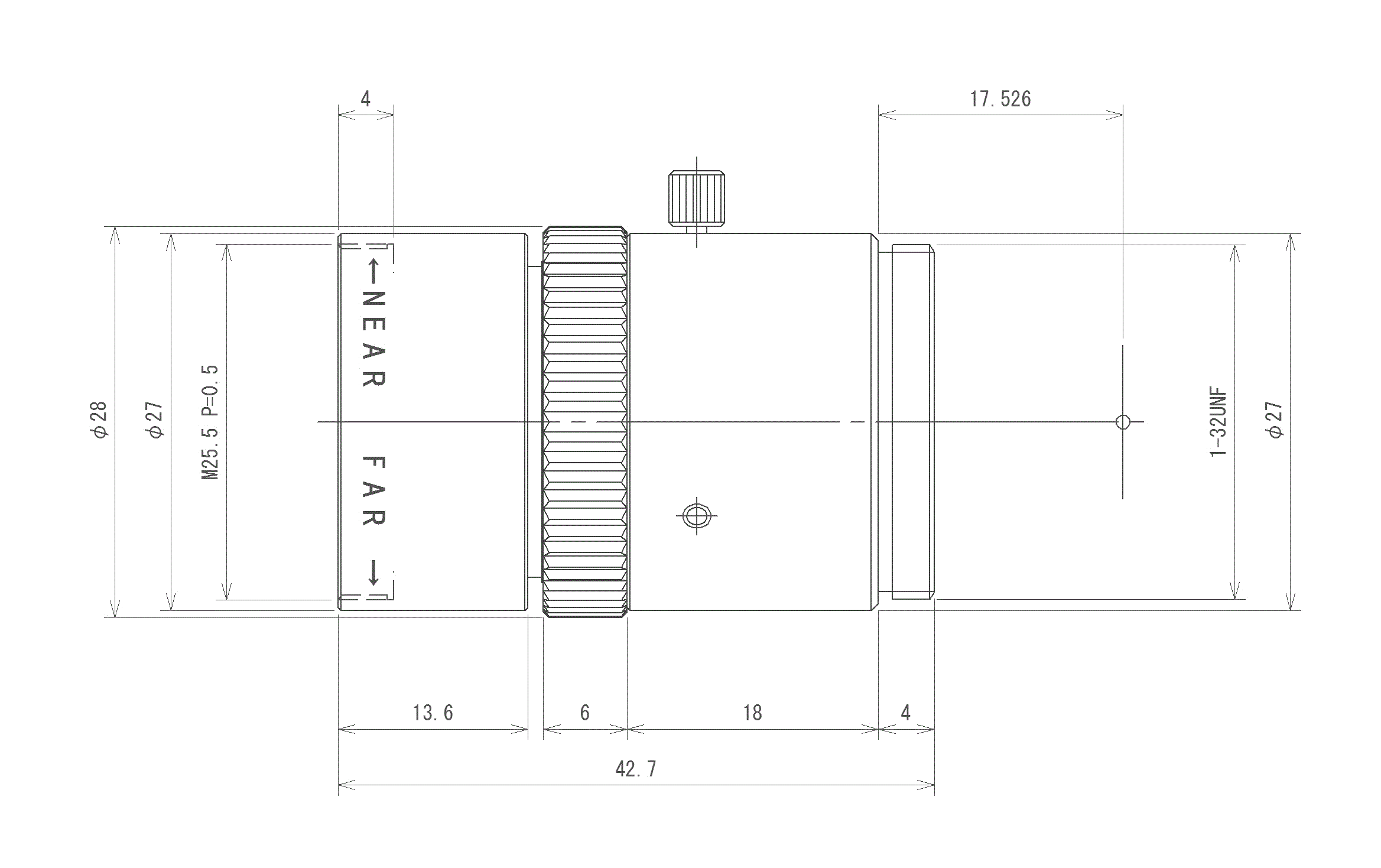

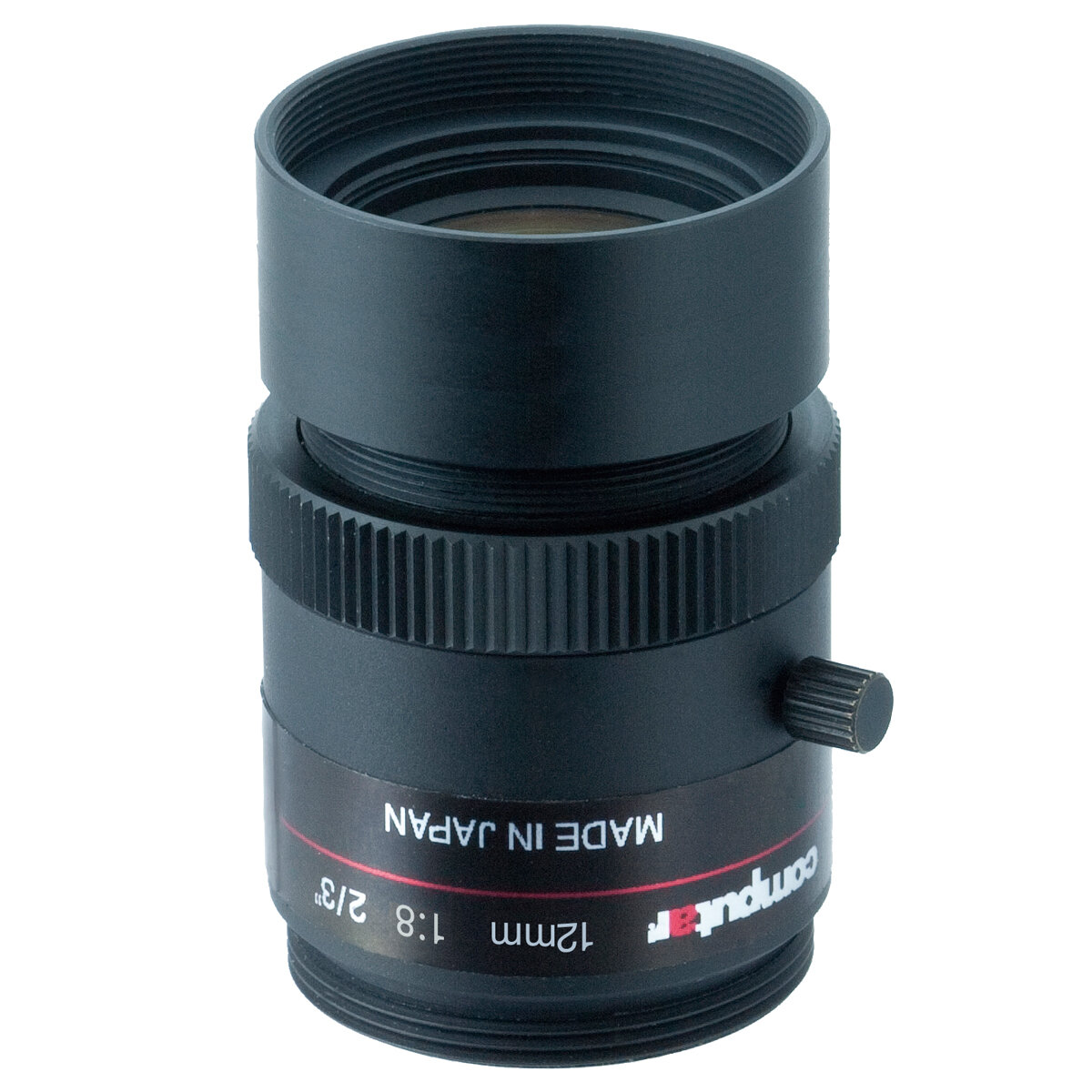

M1224-MPW2-R 2/3" 12mm 2.4 0.1m - Inf. 0.64%(y=5.5) 59g
2D DXF
3D STEP IGES
2021-01-05 16:56:06 5MP 11
M0880-MPW2-R 2/3" 8mm 8.0 0.05m - Inf. -1.51%(y=5.5) 62g
2D DXF
3D STEP IGES
2021-01-05 16:56:06 5MP 11
M0856-MPW2-R 2/3" 8mm 5.6 0.05m - Inf. -1.51%(y=5.5) 62g
2D DXF
3D STEP IGES
2021-01-05 16:56:06 5MP 11
M0840-MPW2-R 2/3" 8mm 4.0 0.05m - Inf. -1.51%(y=5.5) 62g
2D DXF
3D STEP IGES
2021-01-05 16:56:06 5MP 11

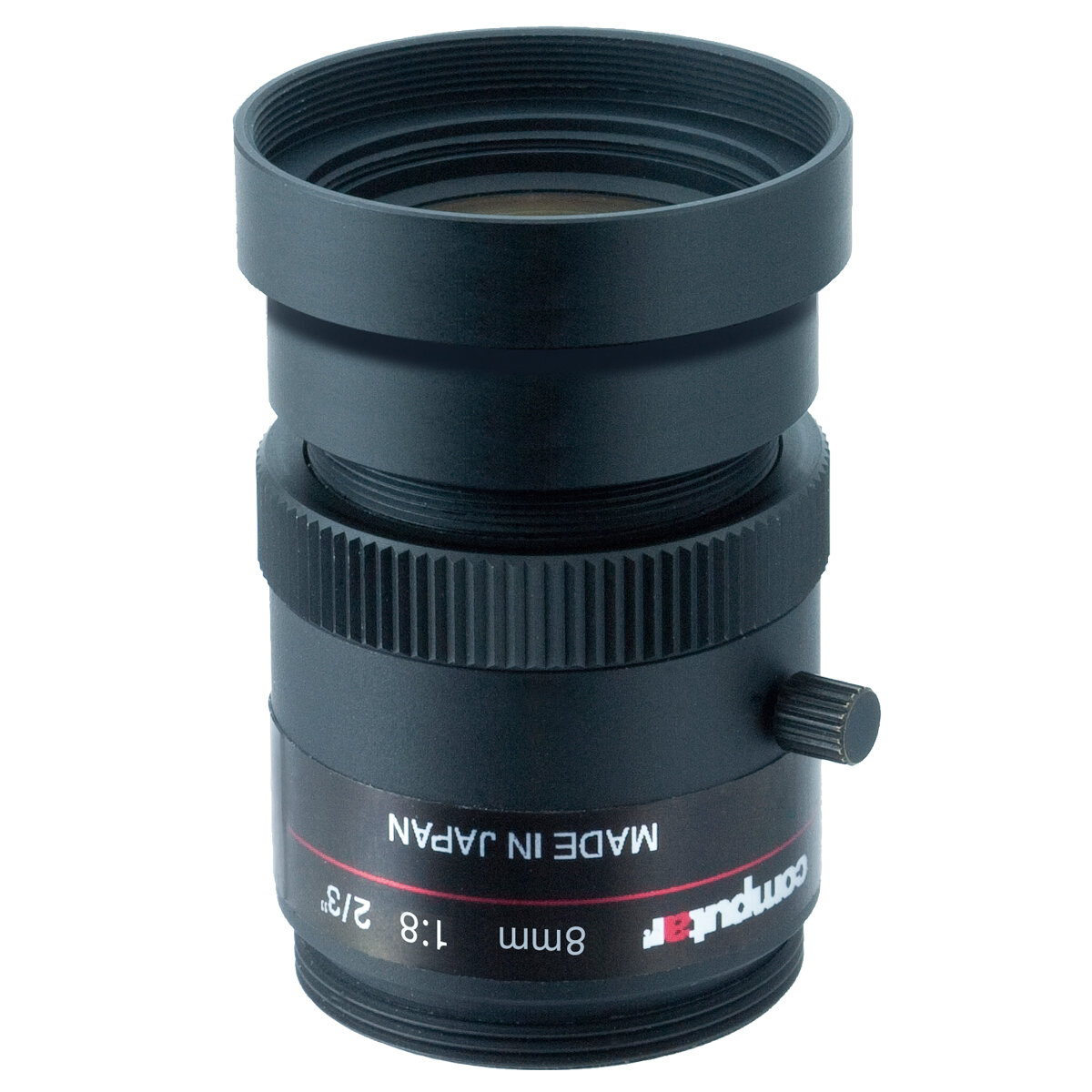

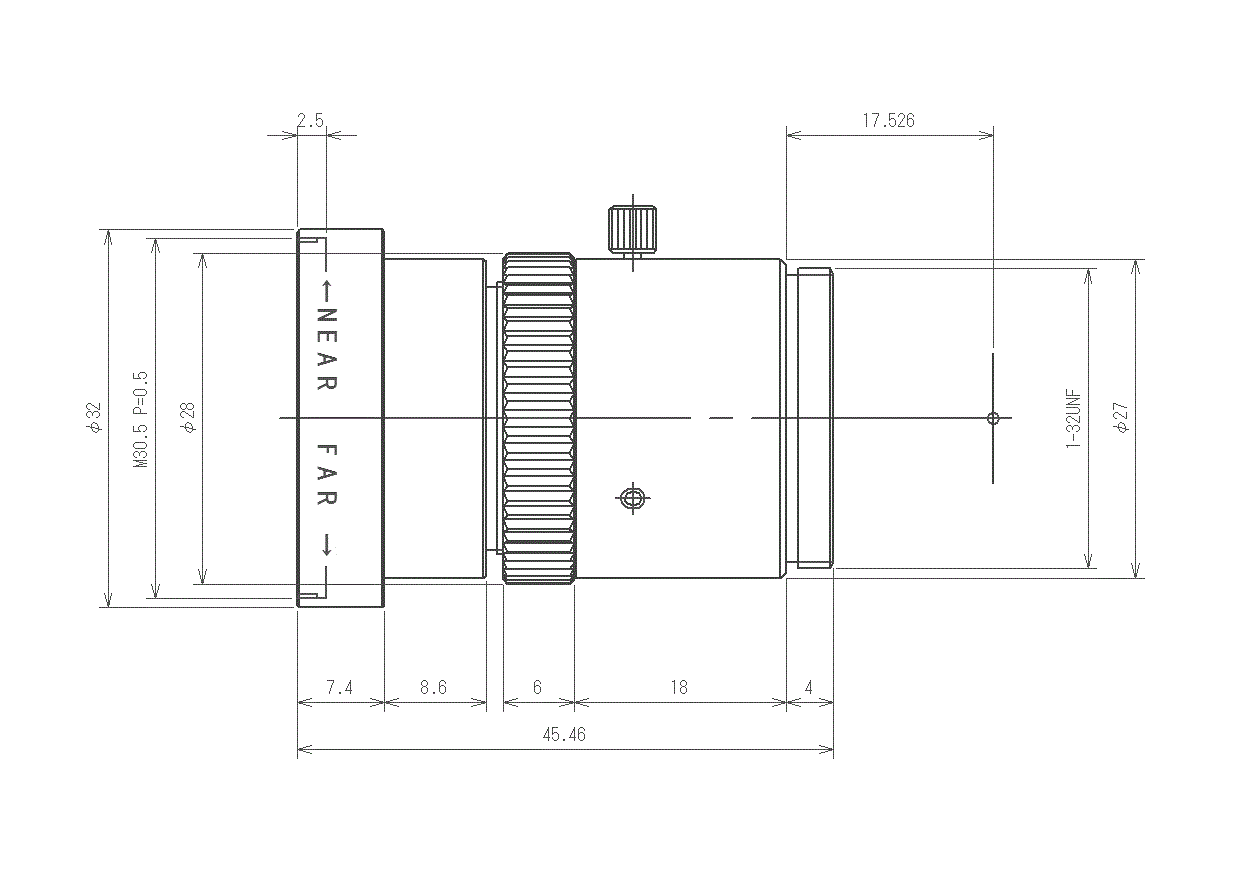

M0824-MPW2-R 2/3" 8mm 2.4 0.05m - Inf. -1.51%(y=5.5) 62g
2D DXF
3D STEP IGES
2021-01-05 16:56:06 5MP 11
M0811-MPW2-R 2/3" 8mm 11.0 0.05m - Inf. -1.51%(y=5.5) 62g
2D DXF
3D STEP IGES
2021-01-05 16:56:00 5MP 11
M1211-MPW2-R 2/3" 12mm 11.0 0.1m - Inf. 0.64%(y=5.5) 59g
2D DXF
3D STEP IGES
2021-01-05 16:54:05 5MP 11
M5011-MPW2-R 2/3" 50mm 11.0 0.4m - Inf. 0.00%(y=5.5) 62g
2D DXF
3D STEP IGES
2021-01-05 15:56:06 5MP 11

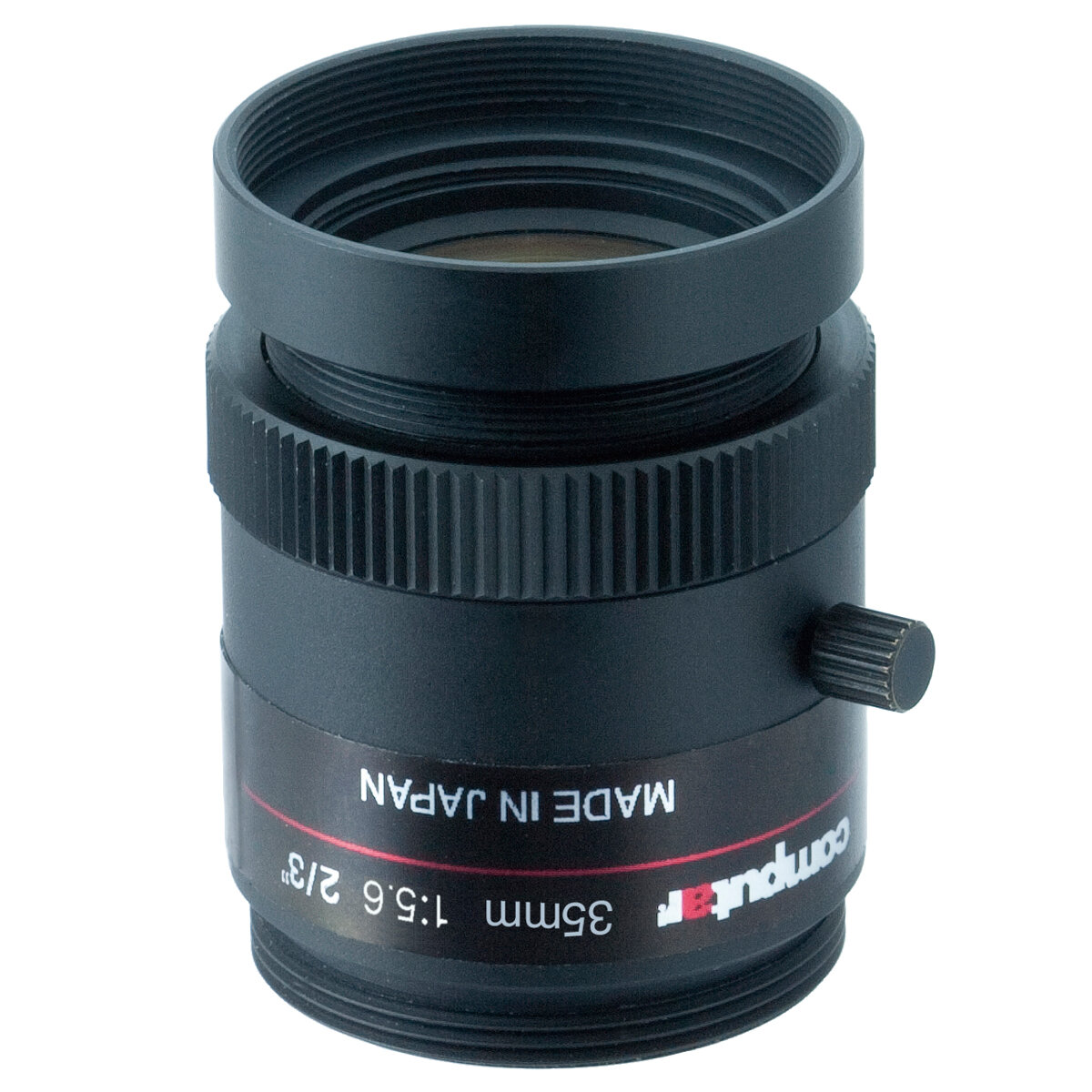

M3511-MPW2-R 2/3" 35mm 11.0 0.2m - Inf. 0.32%(y=5.5) 45g
2D DXF
3D STEP IGES
2021-01-05 15:56:06 5MP 11

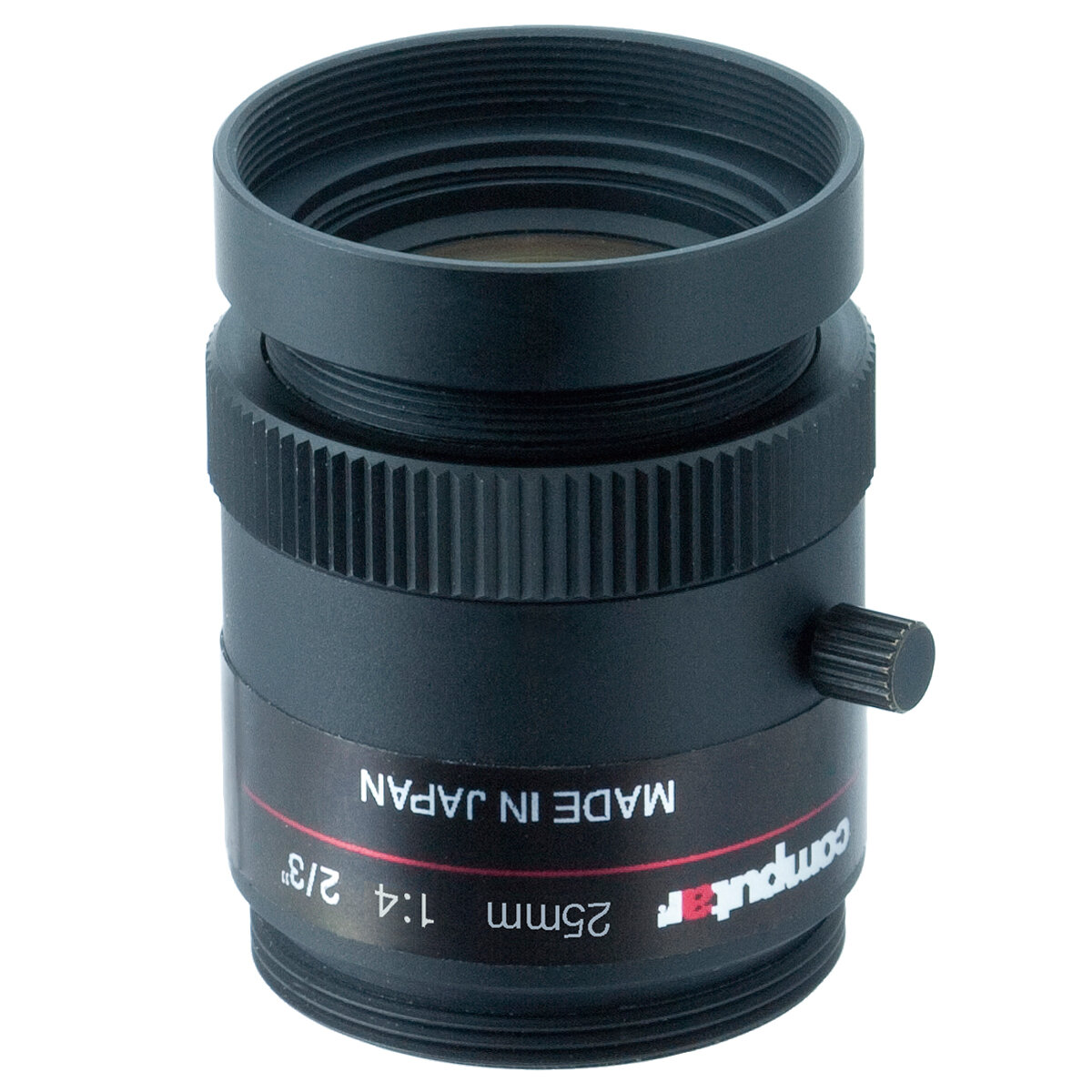

M2511-MPW2-R 2/3" 25mm 11.0 0.2m - Inf. 0.52%(y=5.5) 45g
2D DXF
3D STEP IGES
2021-01-05 15:56:06 5MP 11
M1611-MPW2-R 2/3" 16mm 11.0 0.2m - Inf. 0.59%(y=5.5) 45g
2D DXF
3D STEP IGES
2021-01-05 15:56:06 5MP 11
