- WD140mm～无限远设计。长焦点（望远设计）且适用于微距用途[TEC-M55]
- 紧凑型设计，支持5百万像素[TEC-M55MPW]
- 支持2/3英寸2百万像素。WD65mm和WD110mm的产品阵容[TEC-M MP（C）]
向右滚动表格即可下载外观图纸和技术信息。
向右滚动表格即可下载外观图和技术信息。
|
机型名称
|
传感器尺寸
|
焦距
|
F値
|
拍摄距离
|
失真
|
重量
|
相关图像
|
参数表
|
CAD图纸
|
技术资料
|
date | resolution | image circle |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

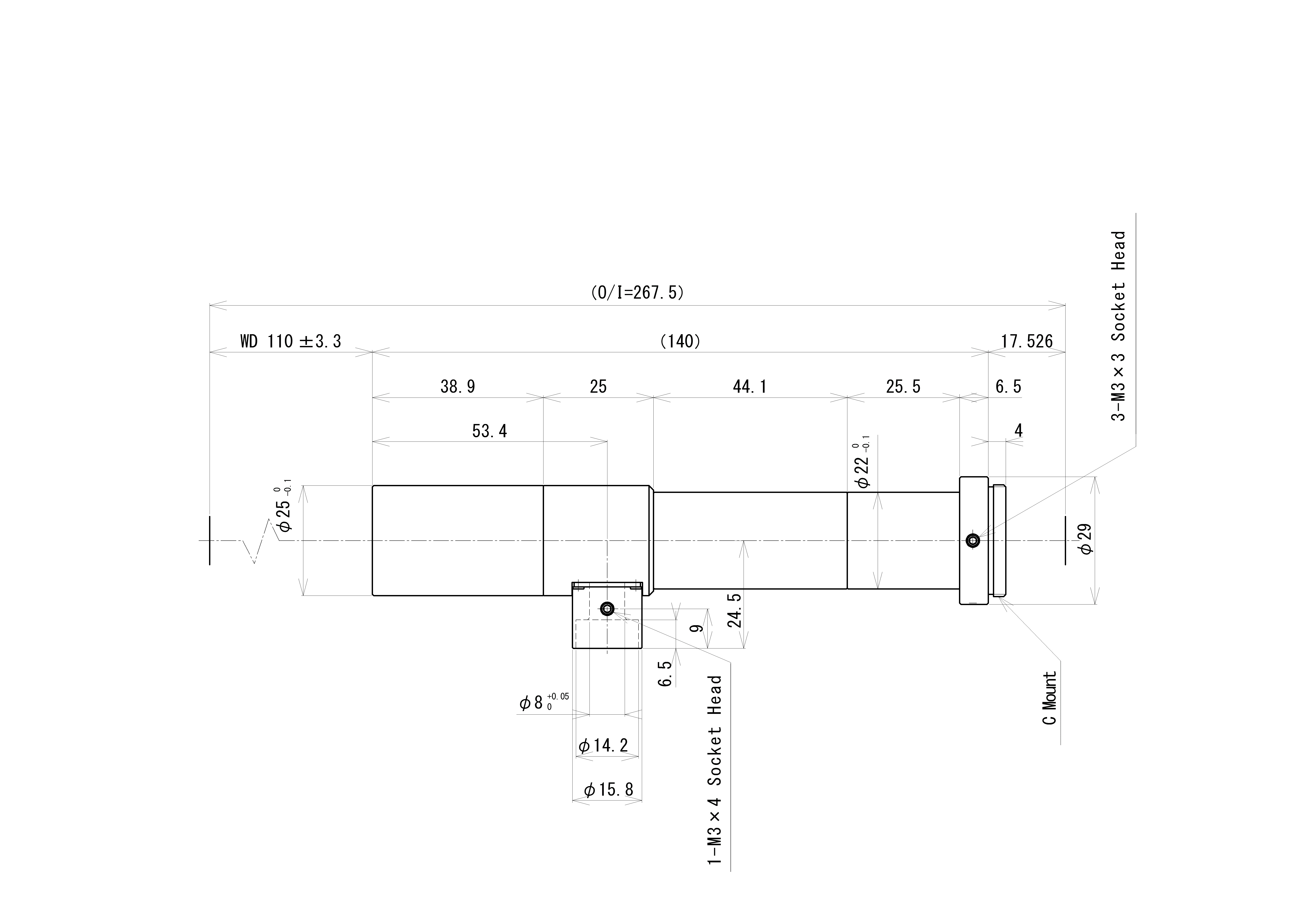

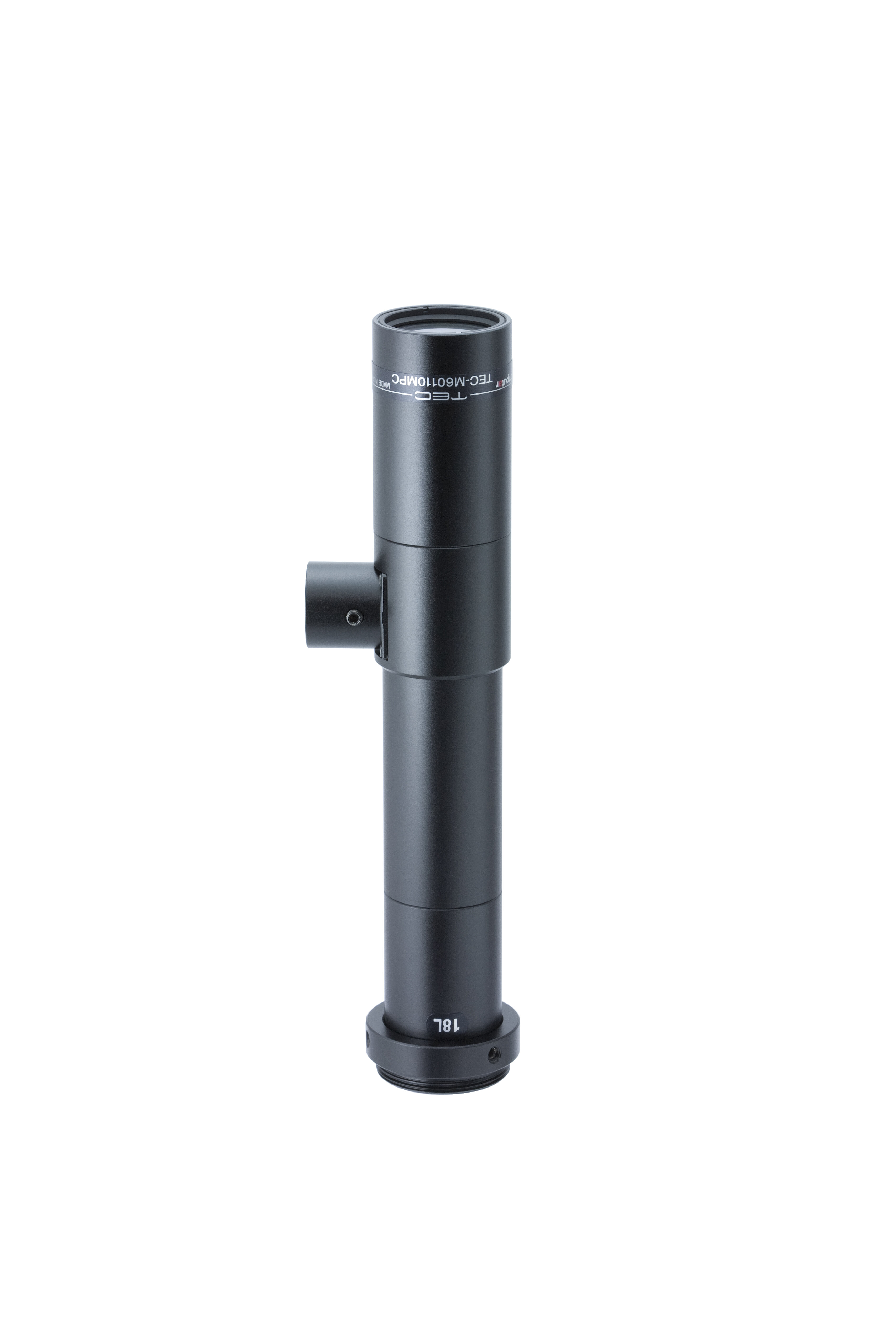

| TEC-M60110MPC | 2/3" | 39.6 | 0.11m | -0.015%(TV Distortion) | 103g | 2021-01-05 16:56:06 | 2MP | 12.8 | |||||

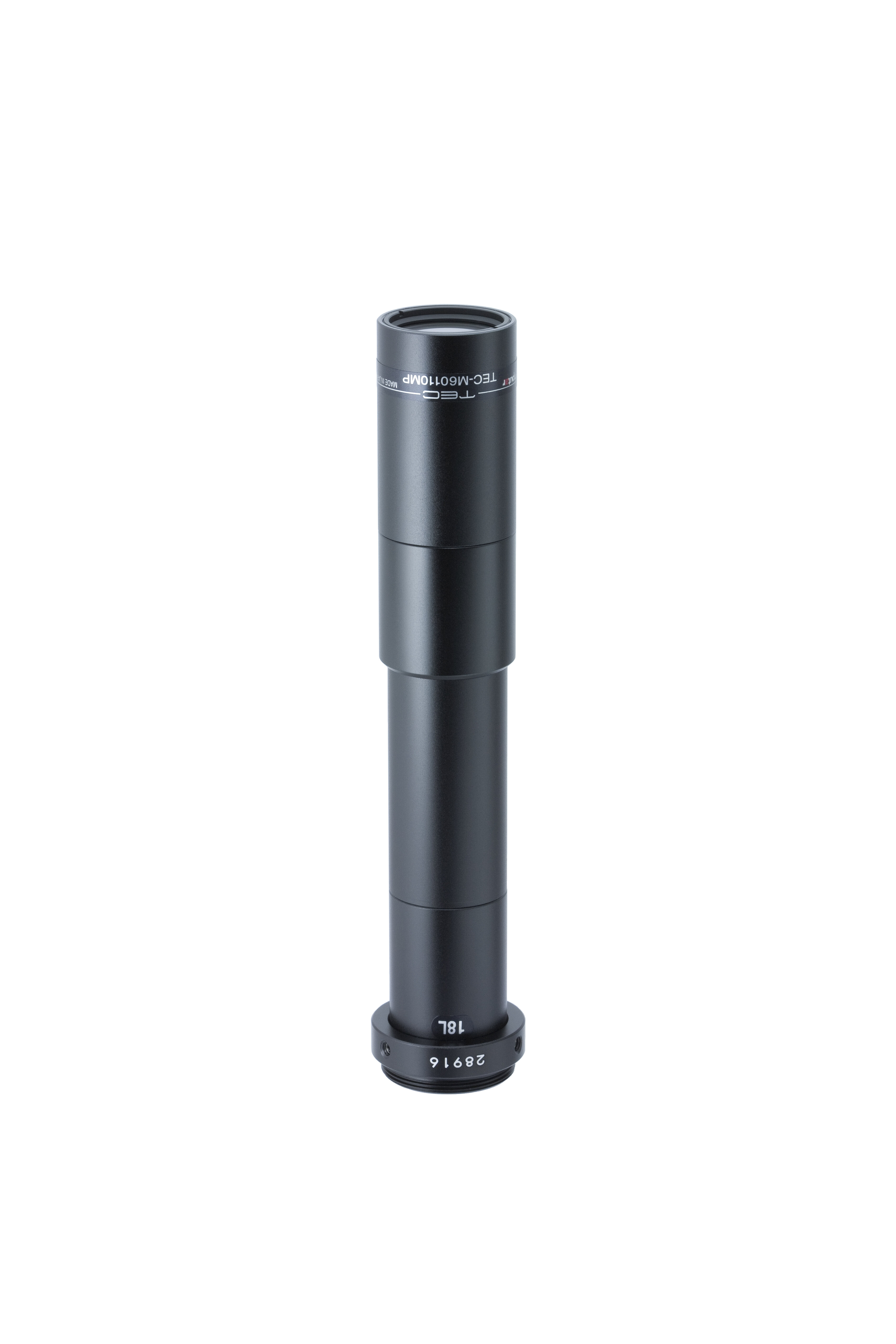

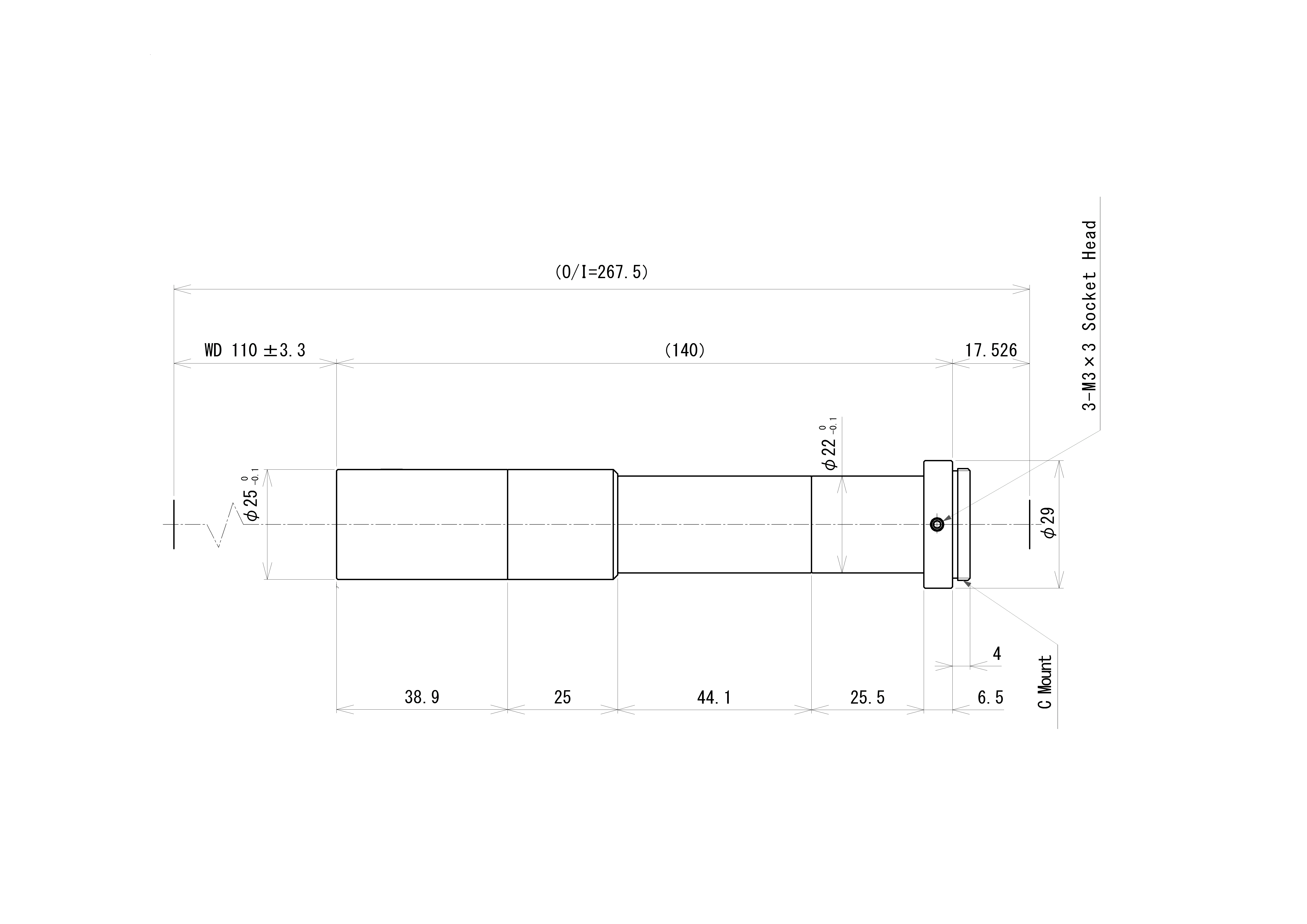

| TEC-M60110MP | 2/3" | 39.6 | 0.11m | -0.015%(TV Distortion) | 101g | 2021-01-05 16:56:06 | 2MP | 12.8 | |||||

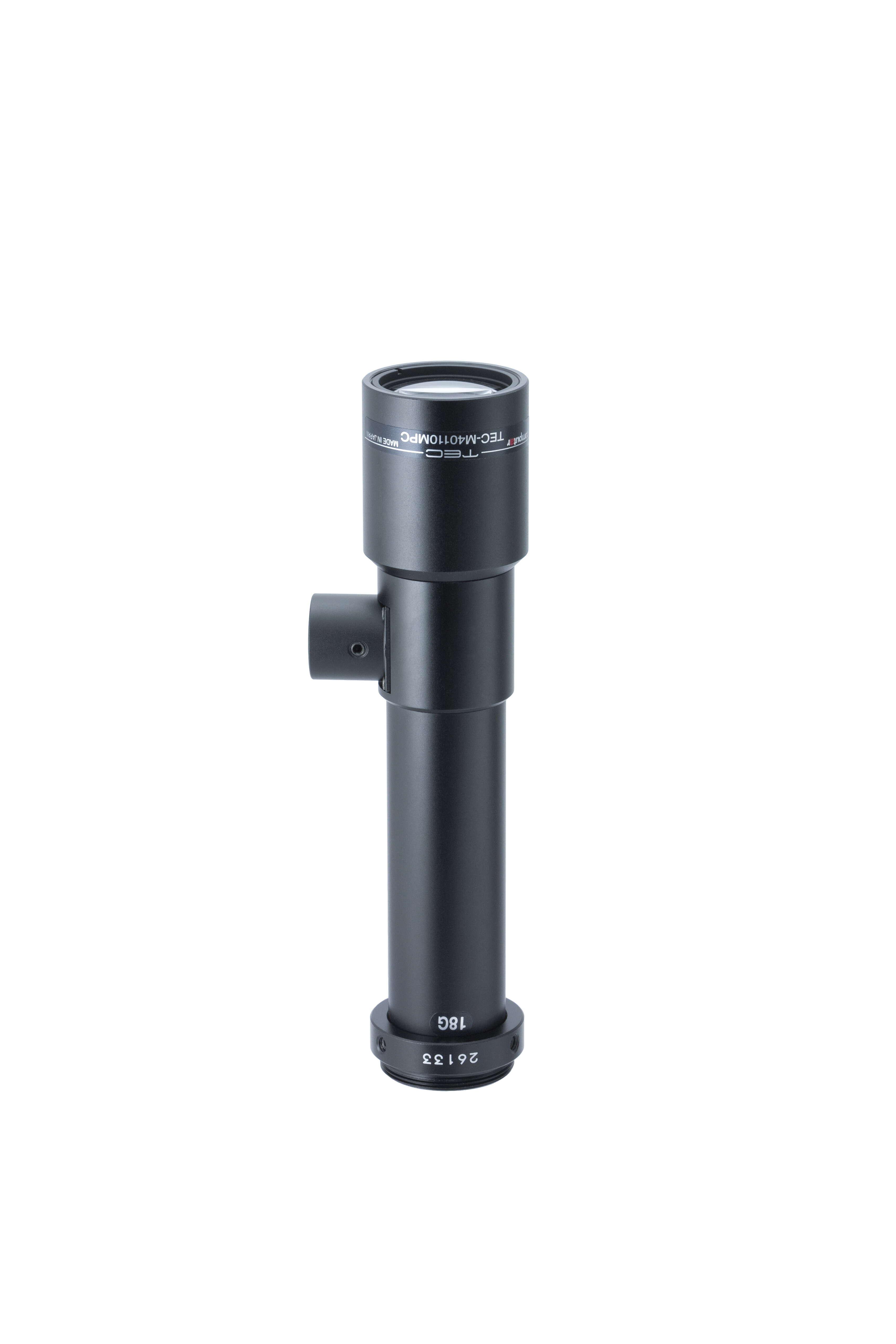

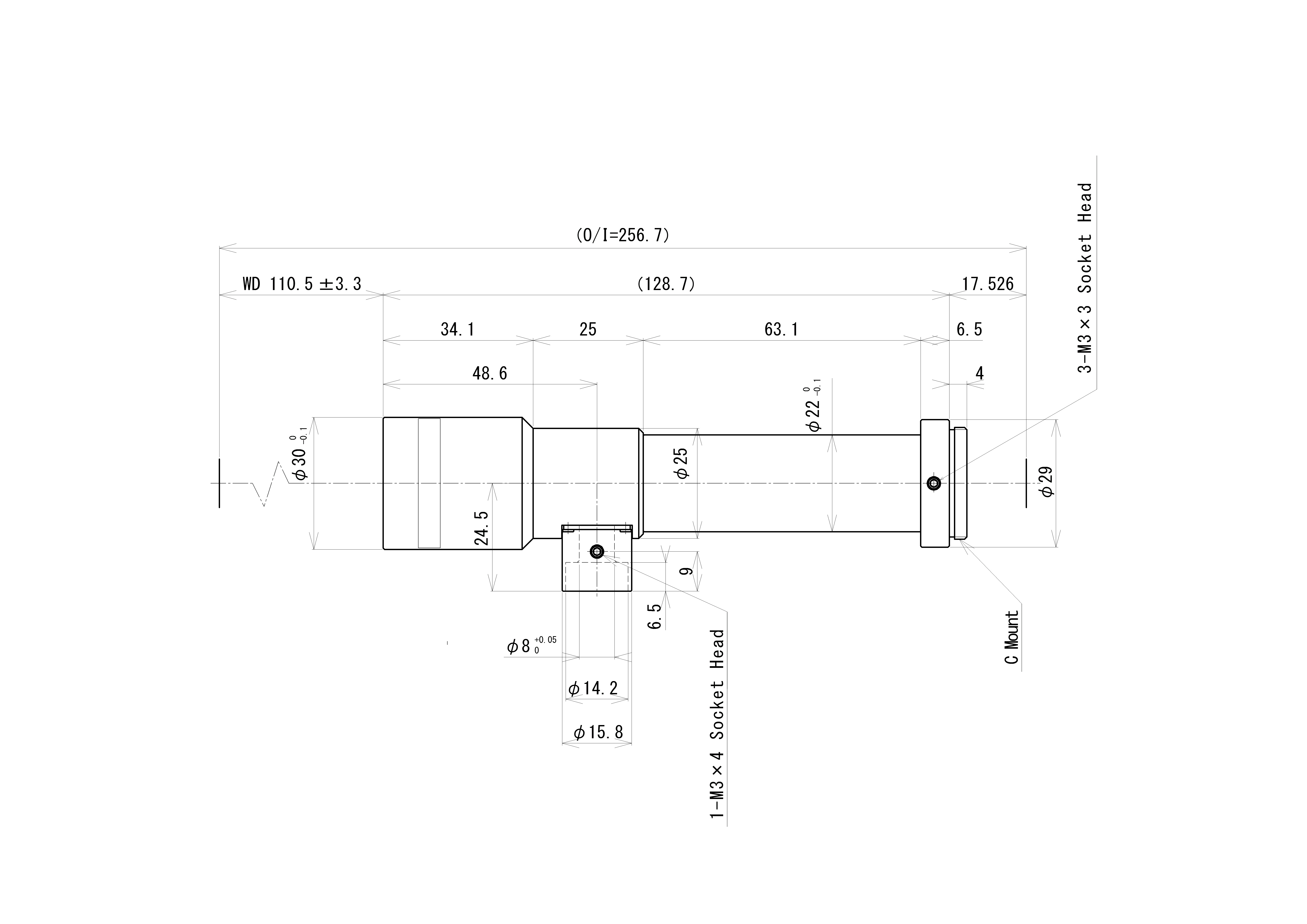

| TEC-M40110MPC | 2/3" | 21.9 | 0.1105m | -0.004%(TV Distortion) | 121g | 2021-01-05 16:56:06 | 2MP | 11 | |||||

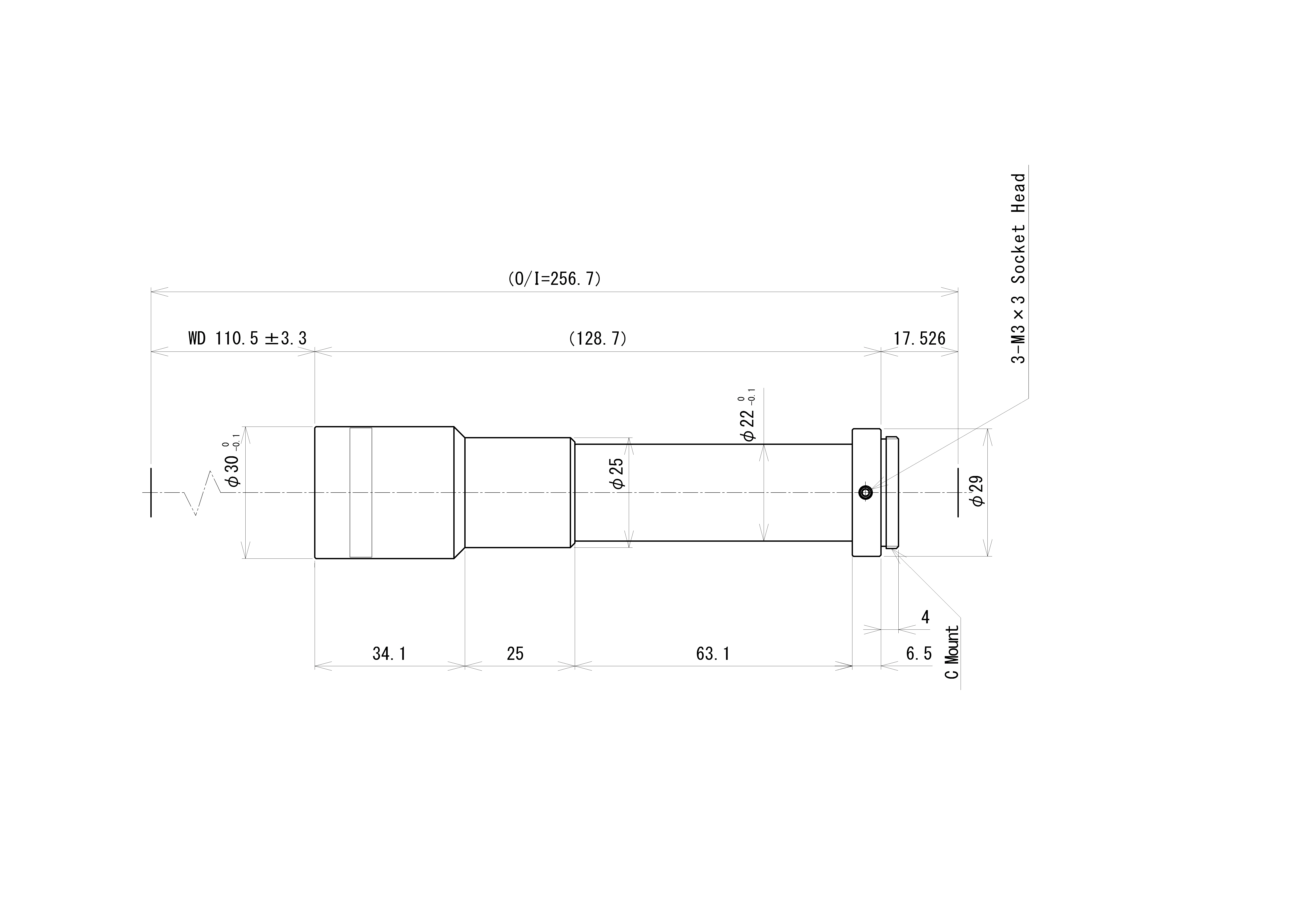

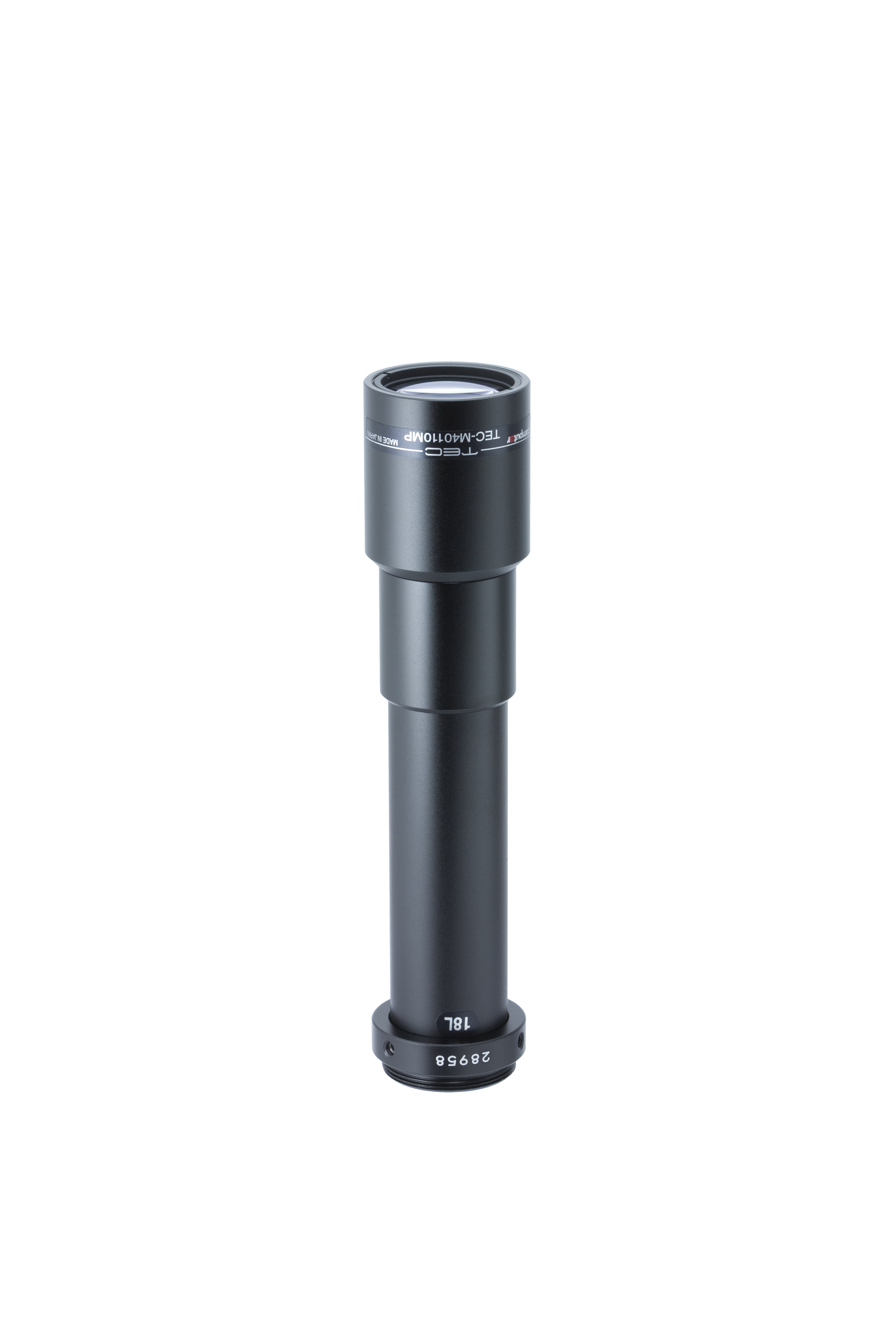

| TEC-M40110MP | 2/3" | 21.9 | 0.1105m | -0.004%(TV Distortion) | 120g | 2021-01-05 16:56:06 | 2MP | 11 | |||||

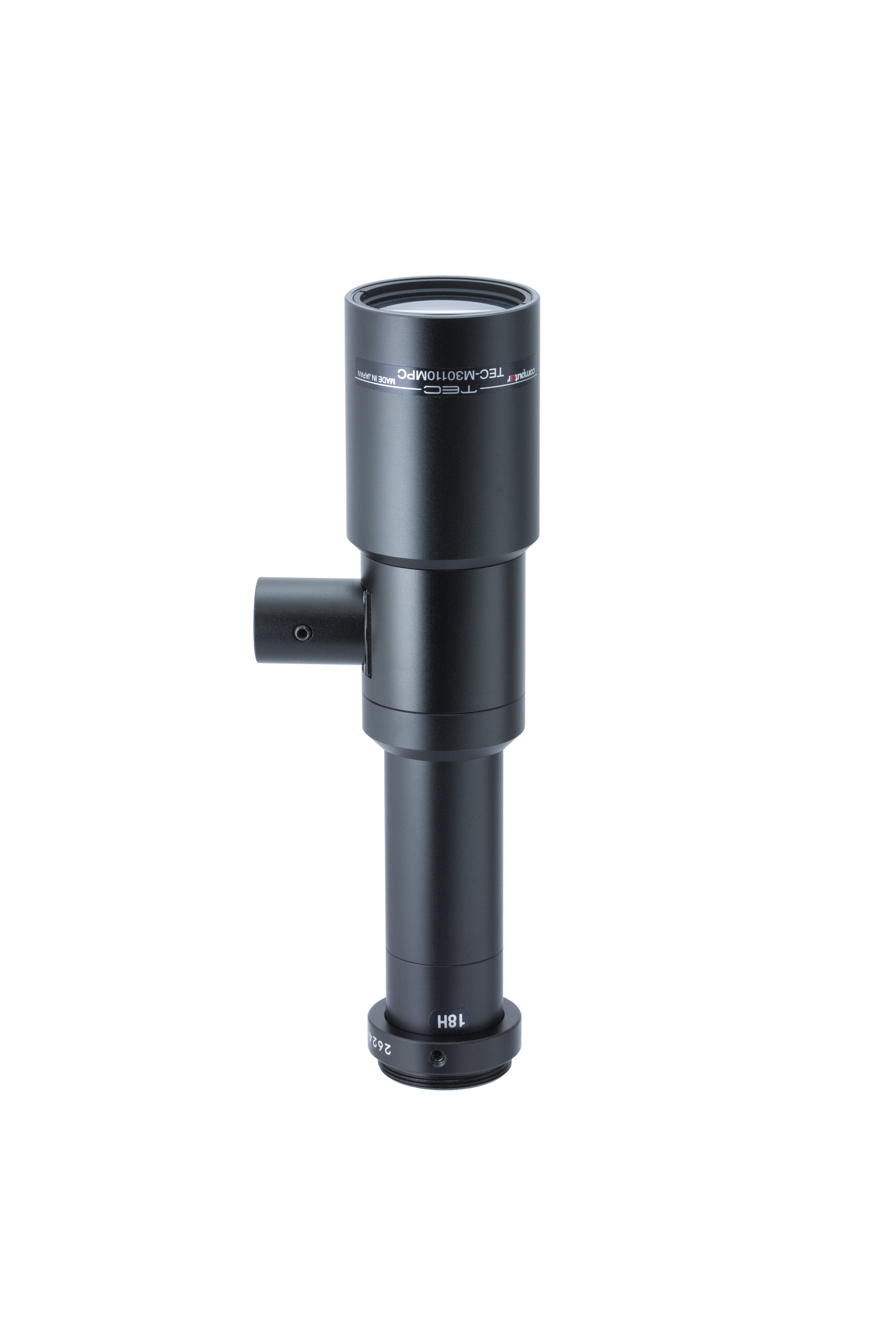

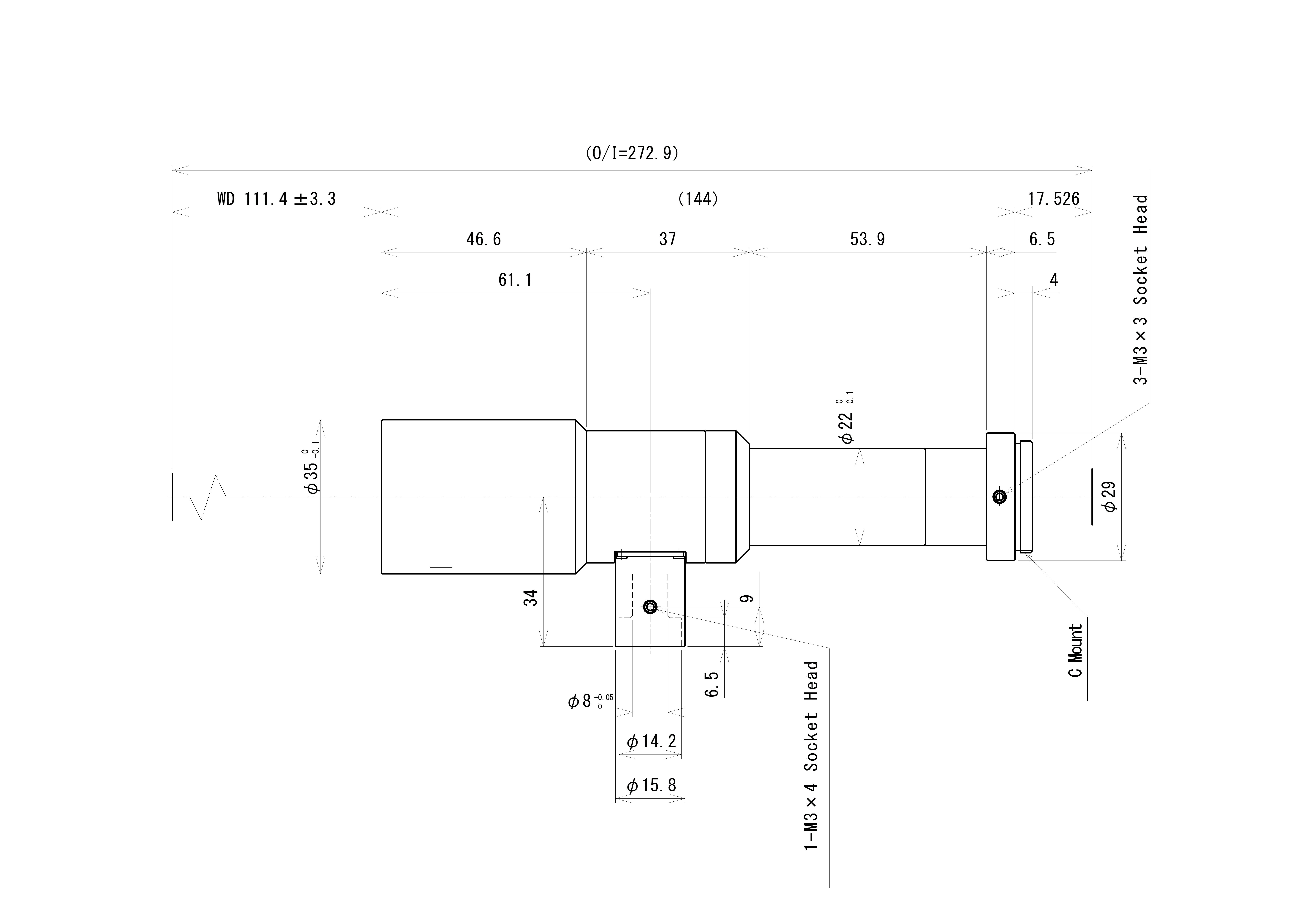

| TEC-M30110MPC | 2/3" | 16.0 | 0.1114m | -0.012%(TV Distortion) | 166g | 2021-01-05 16:56:06 | 2MP | 12.8 | |||||

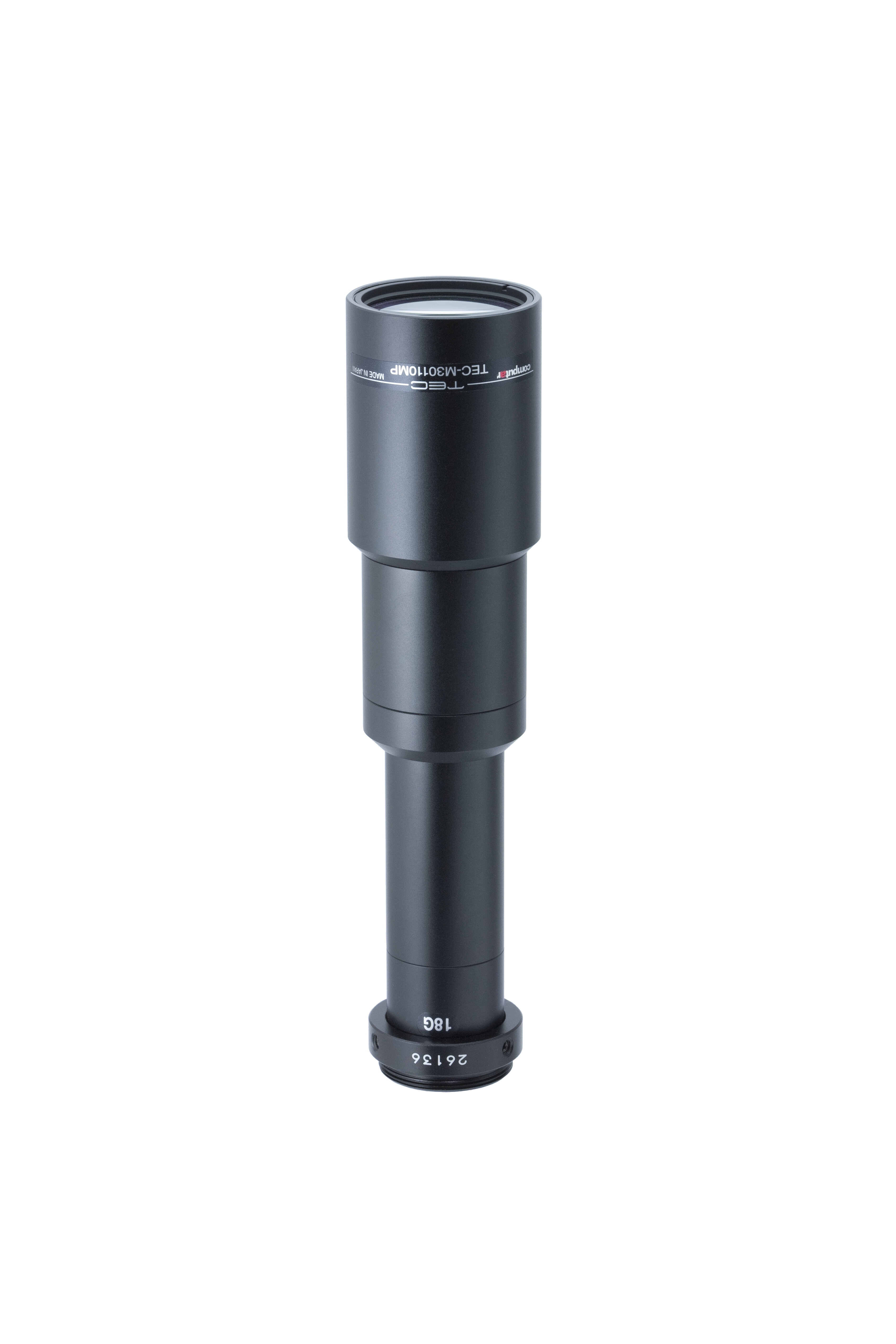

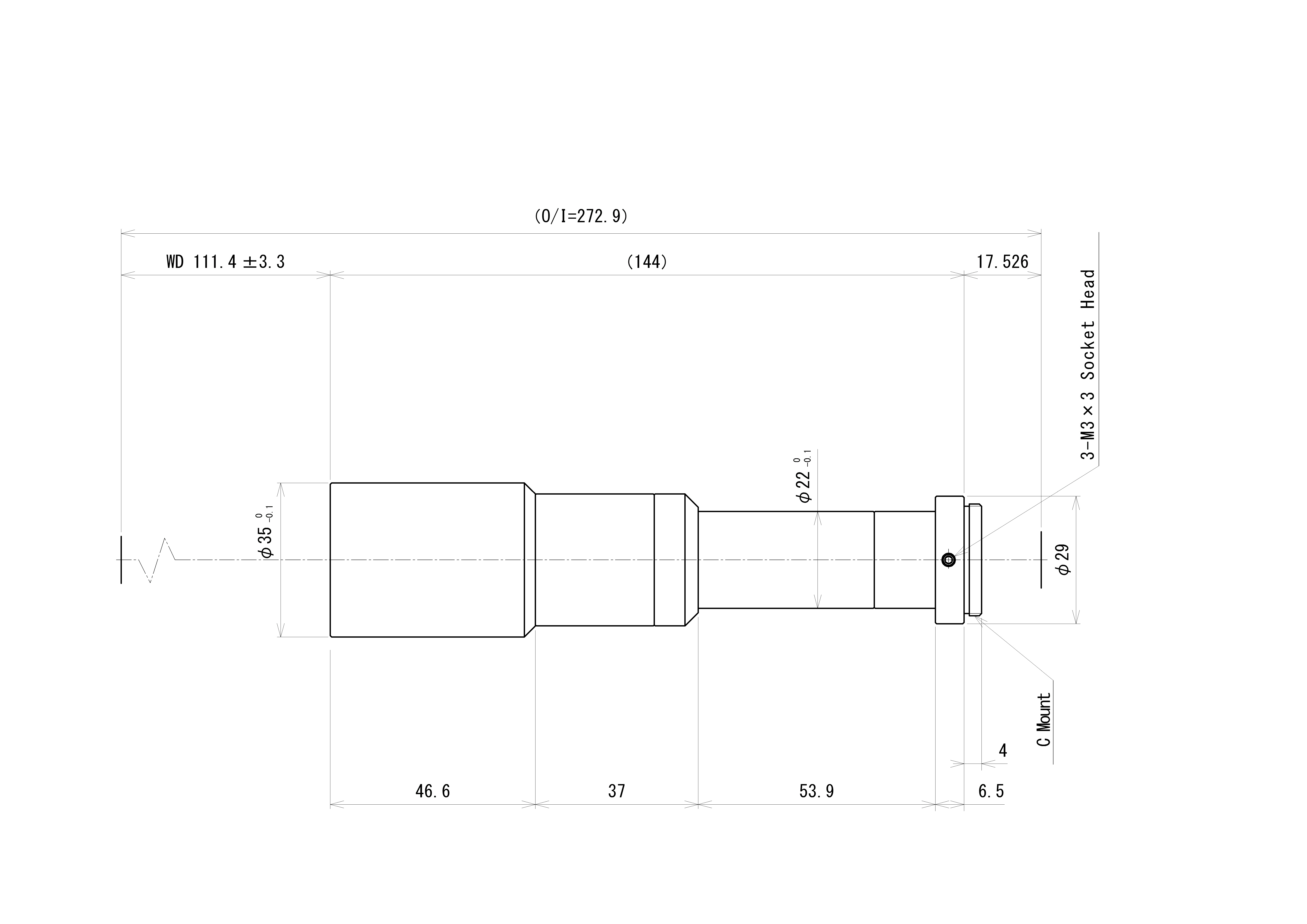

| TEC-M30110MP | 2/3" | 16.0 | 0.1114m | -0.012%(TV Distortion) | 160g | 2021-01-05 16:56:06 | 2MP | 12.8 | |||||

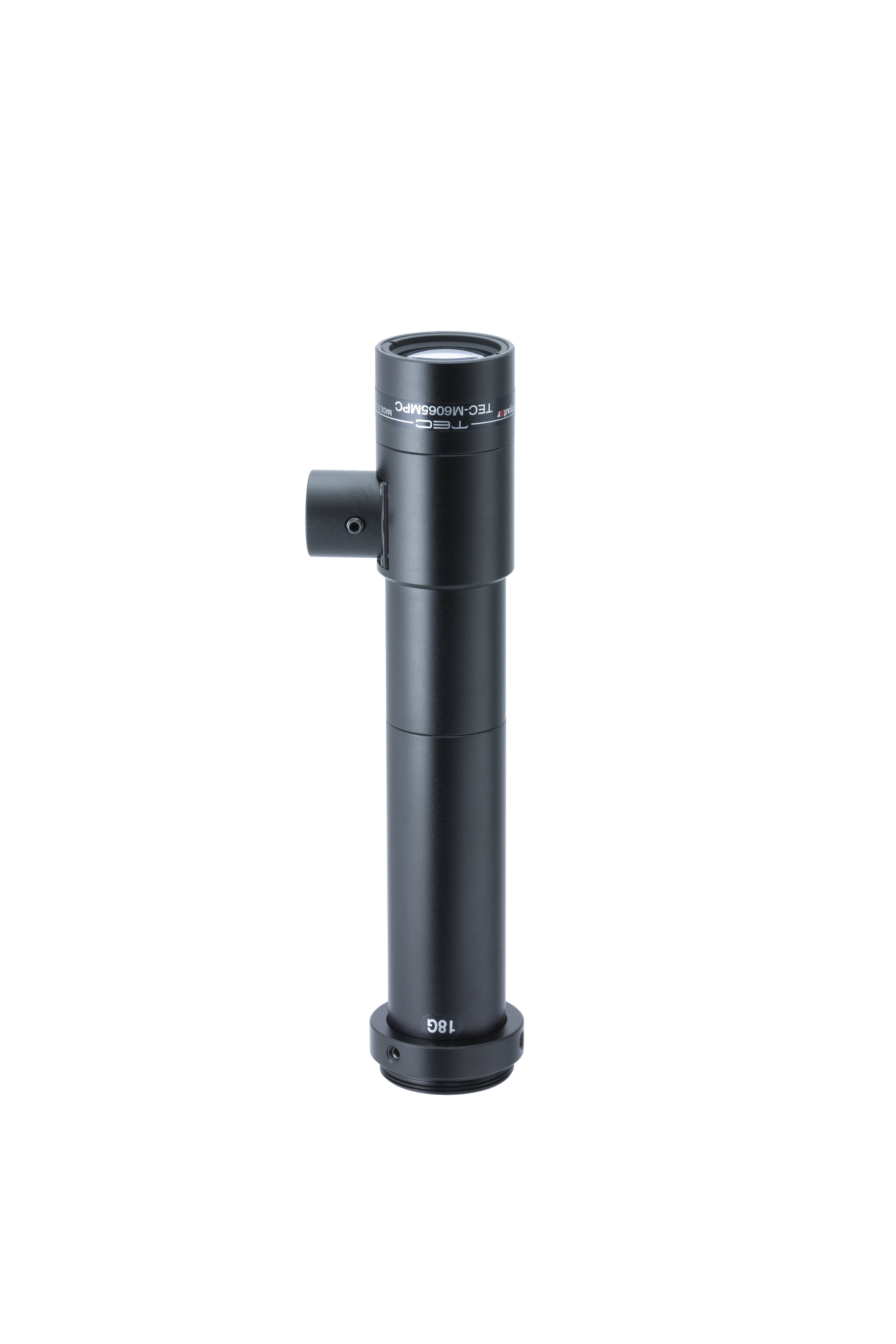

| TEC-M6065MPC | 2/3" | 25.5 | 0.064m | -0.026%(TV Distortion) | 100g | 2021-01-05 16:56:06 | 2MP | 12.8 | |||||

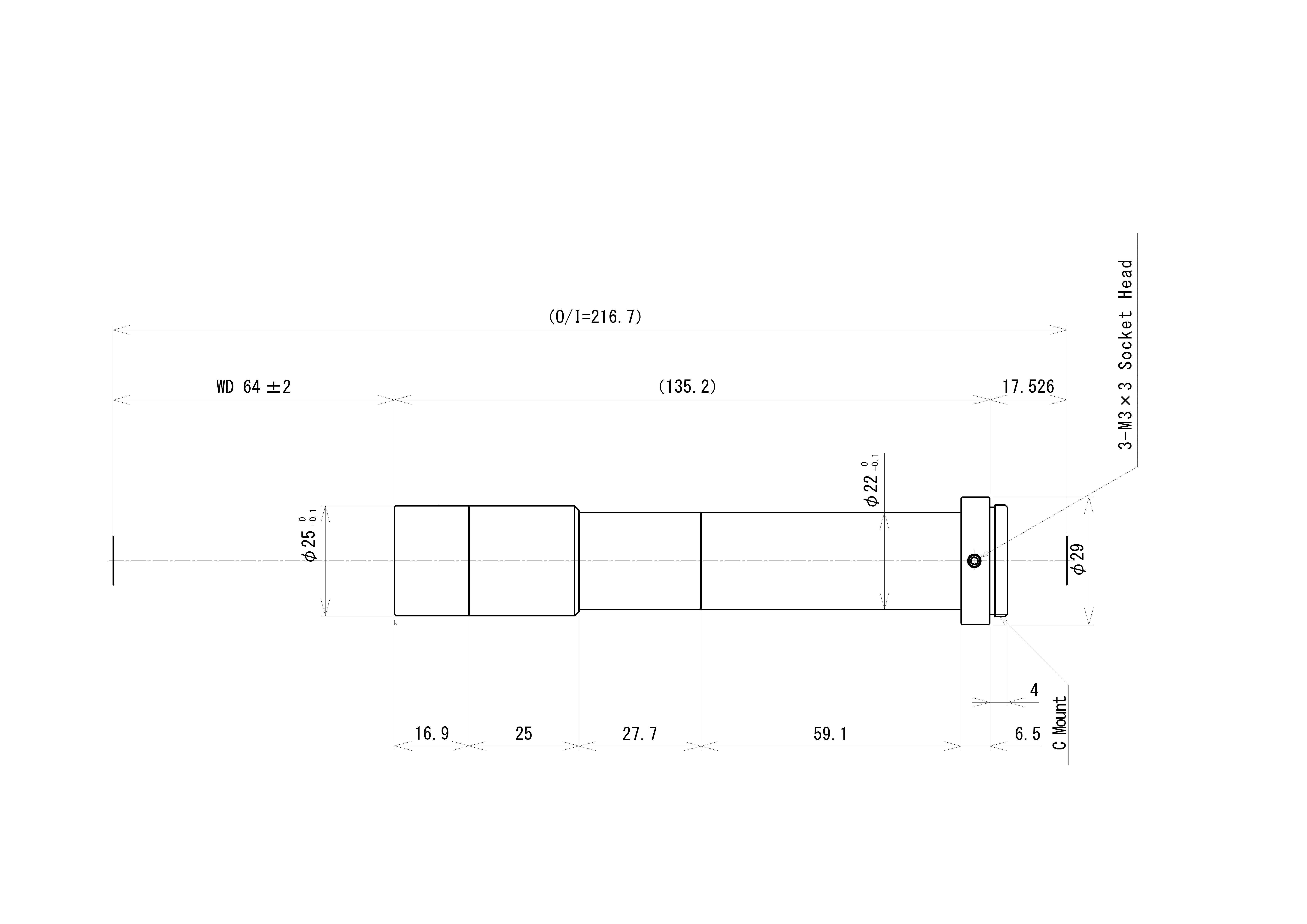

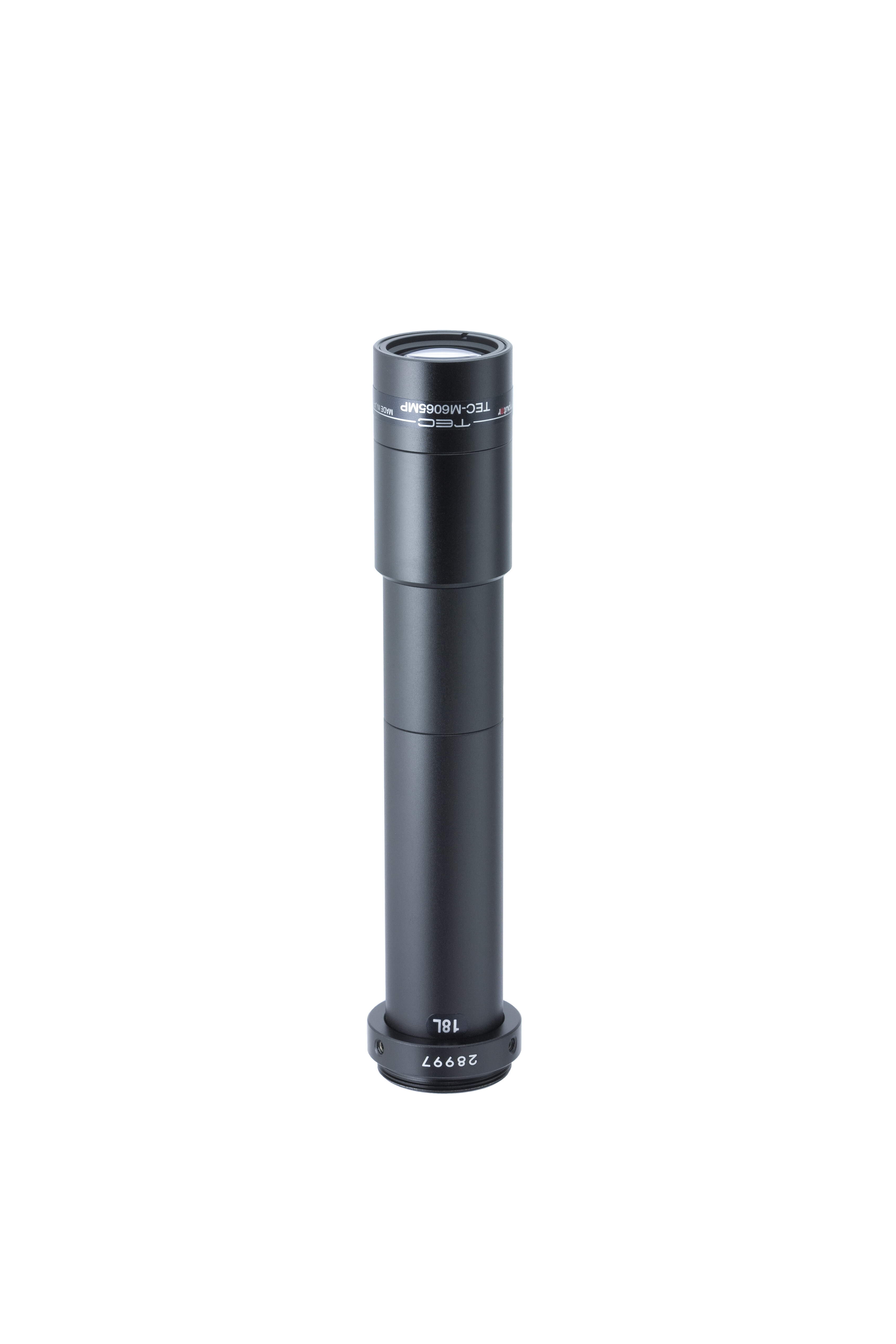

| TEC-M6065MP | 2/3" | 25.5 | 0.064m | -0.026%(TV Distortion) | 98g | 2021-01-05 16:56:06 | 2MP | 12.8 | |||||

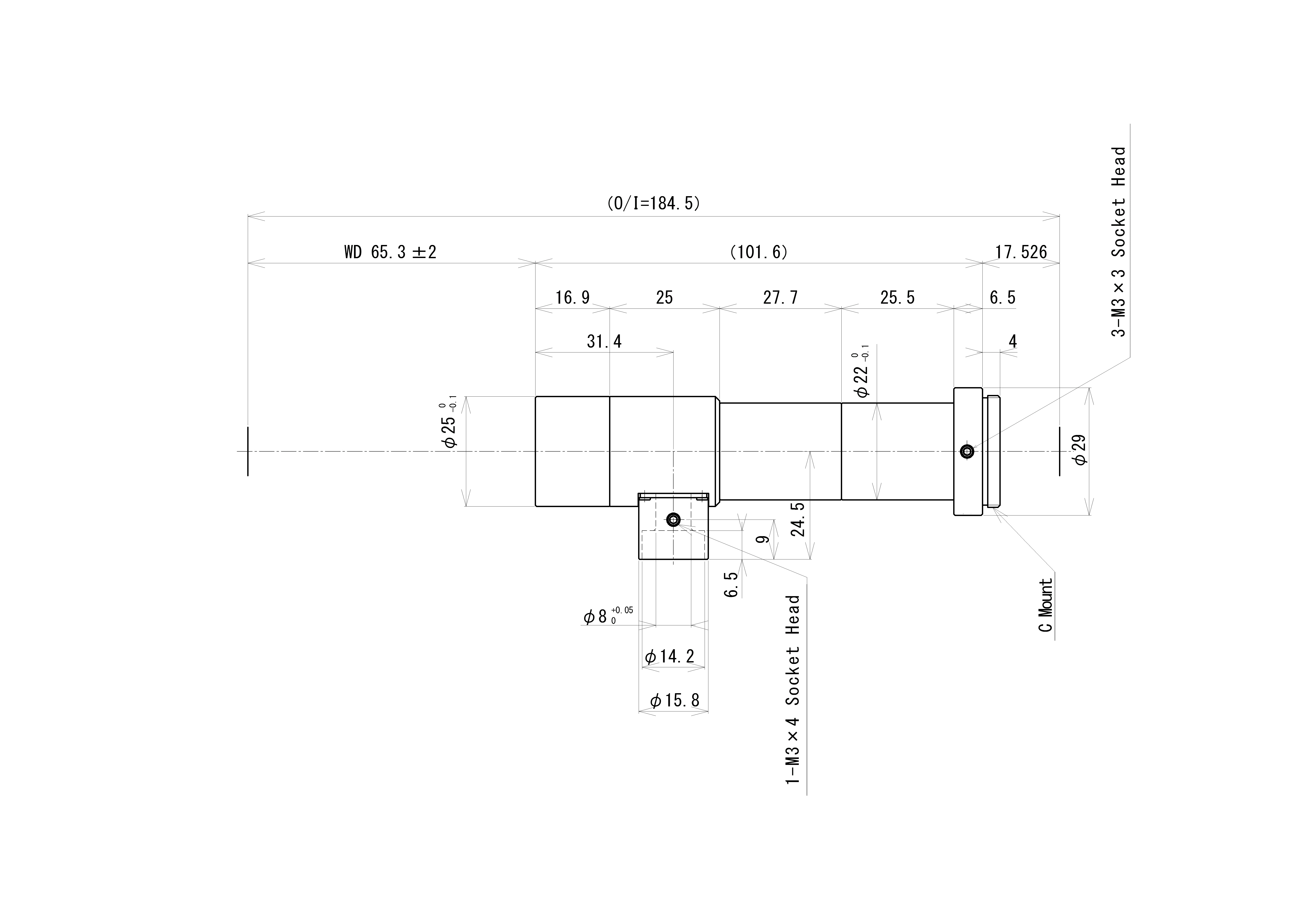

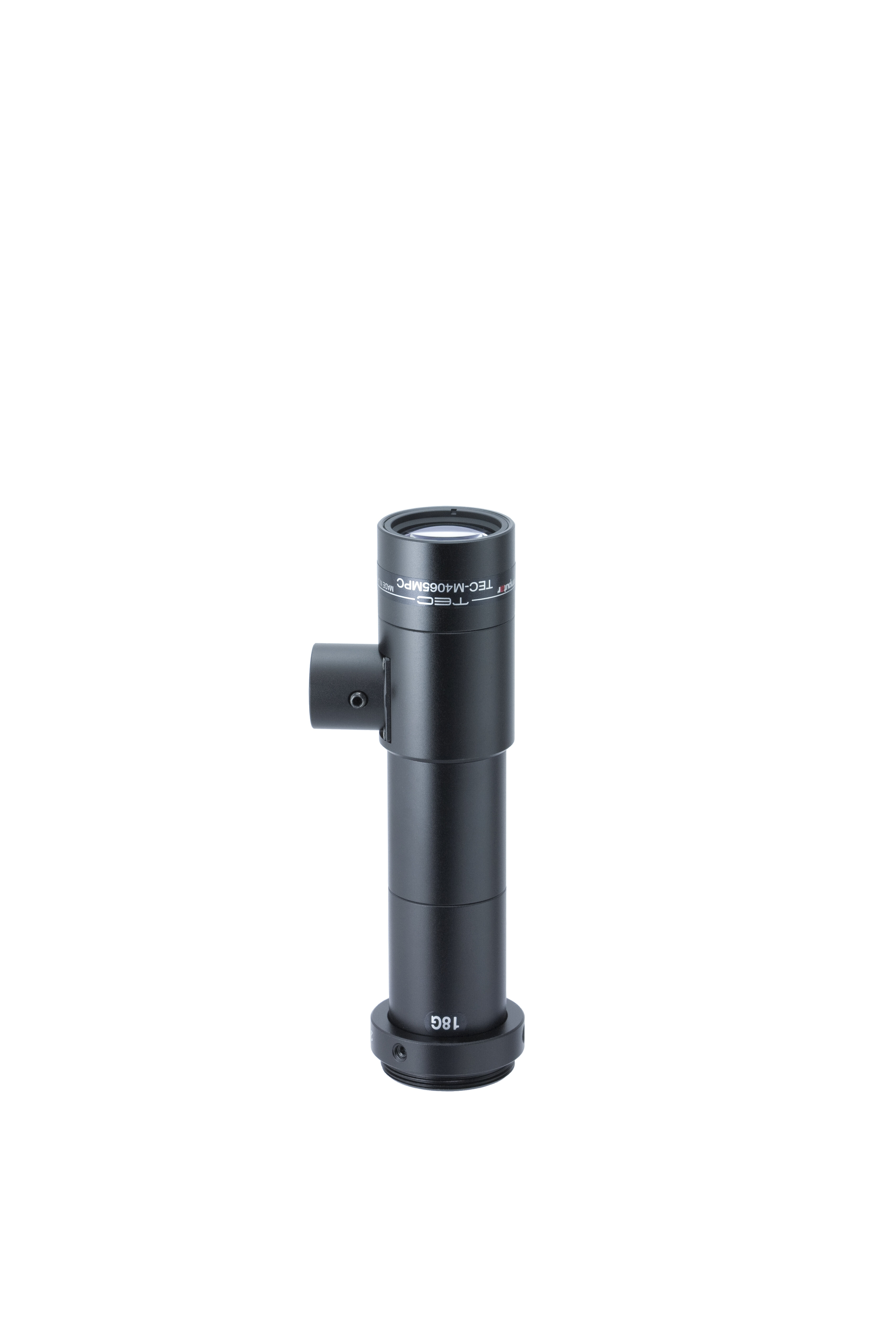

| TEC-M4065MPC | 2/3" | 16.9 | 0.0653m | -0.003%(TV Distortion) | 85g | 2021-01-05 16:56:06 | 2MP | 12.8 | |||||

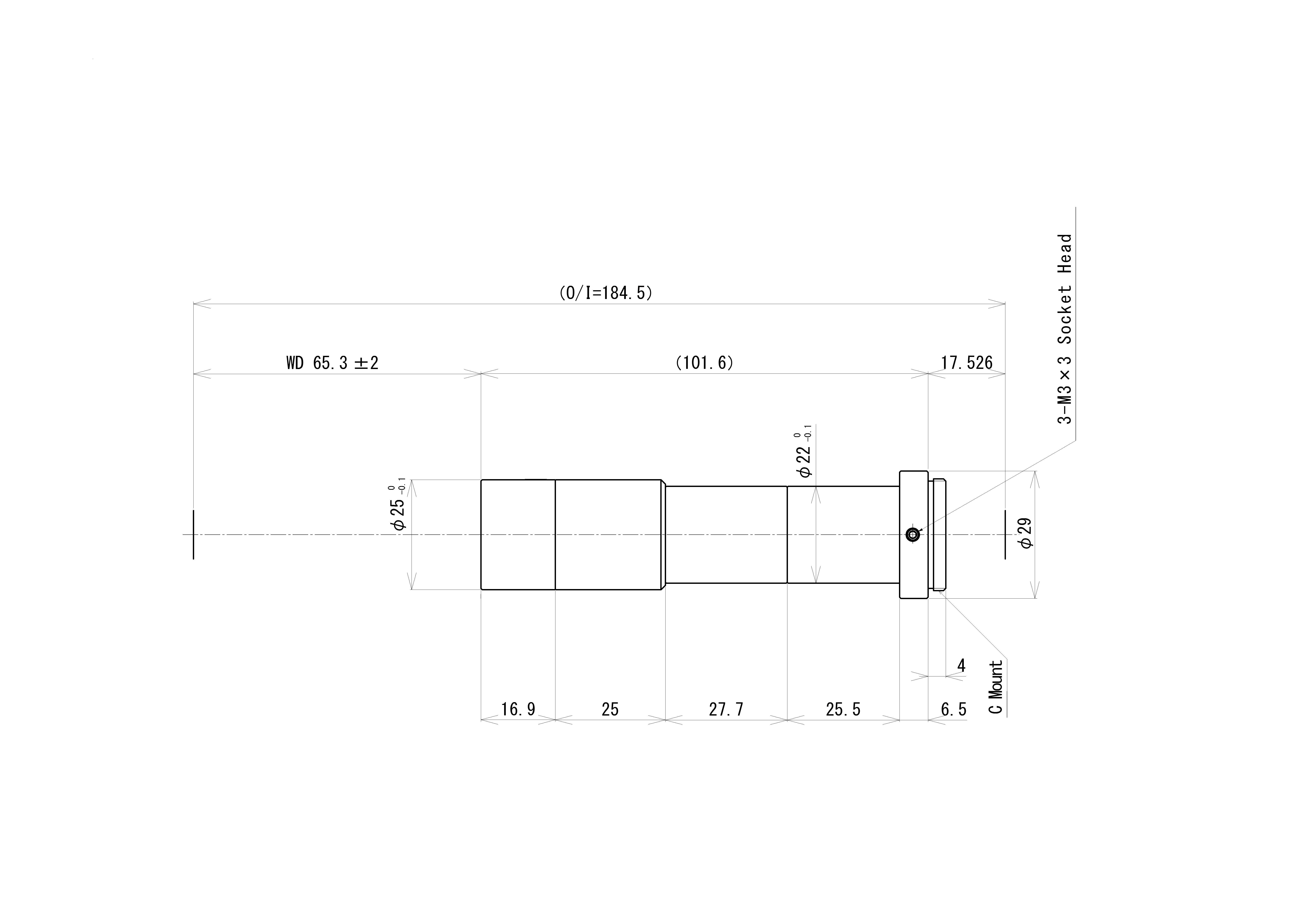

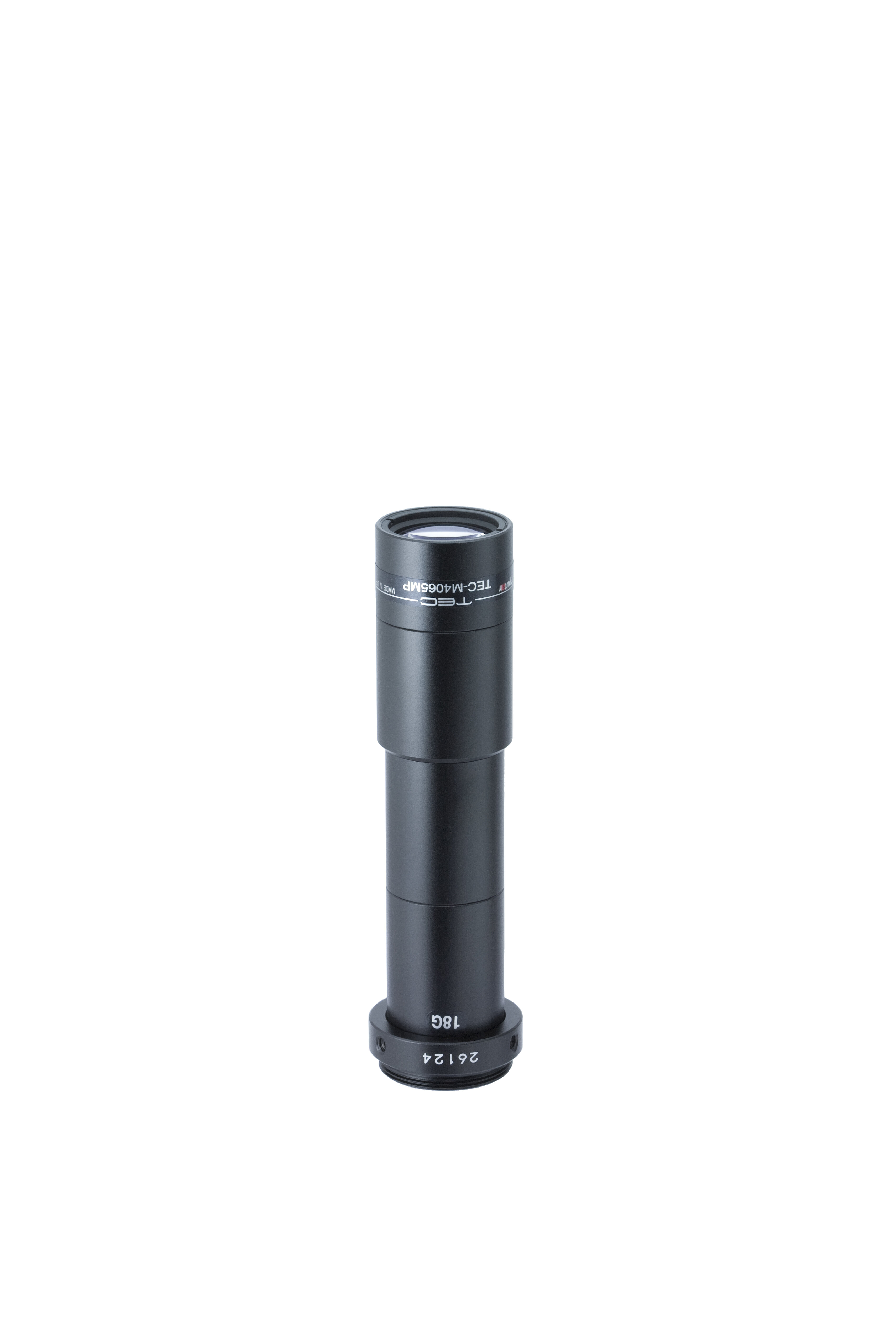

| TEC-M4065MP | 2/3" | 16.9 | 0.0653m | -0.003%(TV Distortion) | 83g | 2021-01-05 16:56:06 | 2MP | 12.8 | |||||
| TEC-M20110MPC | 2/3" | 13.0 | 0.1109m | -0.019%(TV Distortion) | 115g | 2021-01-05 16:56:06 | 2MP | 11 | |||||
| TEC-M20110MP | 2/3" | 13.0 | 0.1109m | -0.019%(TV Distortion) | 113g | 2021-01-05 16:56:06 | 2MP | 11 | |||||
| TEC-M15110MPC | 2/3" | 11.5 | 0.1107m | 0.031%(TV Distortion) | 110g | 2021-01-05 16:56:06 | 2MP | 11 | |||||
| TEC-M15110MP | 2/3" | 11.5 | 0.1107m | 0.031%(TV Distortion) | 108g | 2021-01-05 16:56:06 | 2MP | 11 | |||||
| TEC-M10110MPC | 2/3" | 10.1 | 0.1115m | -0.003%(TV Distortion) | 108g | 2021-01-05 16:56:06 | 2MP | 11 | |||||
| TEC-M10110MP | 2/3" | 10.1 | 0.1115m | -0.003%(TV Distortion) | 105g | 2021-01-05 16:56:06 | 2MP | 11 | |||||
| TEC-M08110MPC | 2/3" | 10.2 | 0.111m | -0.027%(TV Distortion) | 106g | 2021-01-05 16:56:06 | 2MP | 11 | |||||
| TEC-M08110MP | 2/3" | 10.2 | 0.111m | -0.027%(TV Distortion) | 103g | 2021-01-05 16:56:06 | 2MP | 11 | |||||
| TEC-M05110MPC | 2/3" | 9.4 | 0.1118m | -0.009%(TV Distortion) | 131g | 2021-01-05 16:56:06 | 2MP | 11 | |||||
| TEC-M05110MP | 2/3" | 9.4 | 0.1118m | -0.009%(TV Distortion) | 128g | 2021-01-05 16:56:06 | 2MP | 11 | |||||
| TEC-M03110MPC | 2/3" | 6.5 | 0.111m | 0.026%(TV Distortion) | 166g | 2021-01-05 16:56:06 | 2MP | 11 | |||||
| TEC-M03110MP | 2/3" | 6.5 | 0.111m | 0.026%(TV Distortion) | 160g | 2021-01-05 16:56:06 | 2MP | 11 | |||||
| TEC-M2065MPC | 2/3" | 12.8 | 0.0654m | 0.020%(TV Distortion) | 55g | 2021-01-05 16:56:06 | 2MP | 11 | |||||
| TEC-M2065MP | 2/3" | 12.8 | 0.0654m | 0.020%(TV Distortion) | 49g | 2021-01-05 16:56:06 | 2MP | 11 | |||||
| TEC-M1065MPC | 2/3" | 9.8 | 0.0655m | -0.022%(TV Distortion) | 54g | 2021-01-05 16:56:06 | 2MP | 11 | |||||
| TEC-M1065MP | 2/3" | 9.8 | 0.0655m | -0.022%(TV Distortion) | 49g | 2021-01-05 16:56:06 | 2MP | 11 | |||||
| TEC-M0865MPC | 2/3" | 9.4 | 0.066m | 0.008%(TV Distortion) | 62g | 2021-01-05 16:56:06 | 2MP | 11 | |||||
| TEC-M0865MP | 2/3" | 9.4 | 0.066m | 0.008%(TV Distortion) | 57g | 2021-01-05 16:56:06 | 2MP | 11 | |||||
| TEC-M0565MPC | 2/3" | 9.0 | 0.0655m | -0.012%(TV Distortion) | 80g | 2021-01-05 16:56:06 | 2MP | 11 | |||||
| TEC-M0565MP | 2/3" | 9.0 | 0.0655m | -0.012%(TV Distortion) | 77g | 2021-01-05 16:56:06 | 2MP | 11 | |||||
| TEC-M55MPW | 2/3" | 3.0 | 0.139m - 1m | 0.52% - 0.6%(y=5.5) | 400g | 2021-01-05 16:56:06 | 5MP | 11 | |||||
| TEC-M55 | 2/3" | 2.8 | 0.14m - Inf. | 0.6%(y=5.5) | 320g | 2021-01-05 16:56:06 | VGA | 11 |
